Link Manufacturing has developed a broad array of deployable mounted aluminum ramp solutions engineered for commercial vans and box trucks. Link’s lightweight, lowprofile mounted aluminum ramps vertically mount just inside a vehicle’s rear or side doors. Each mounted ramp is made from high-strength aluminum and engineered for simple installation and ease of use.
All Link mounted ramps are fast, easy and convenient to deploy, use and stow and an optional built-in spring assist feature is also available on some models. Opening and closing the ramp requires only 50 pounds of force and the ramps can be unfolded and folded back into their vertical, low-profile storage position in less than 10 seconds. By stowing vertically inside the vehicle’s cargo hold, the ramp is not exposed to the weather or road debris and takes up less than 12 inches of horizontal space.
The high-strength LB10 Series ramp mounts in vans with a sidestep and easily stores in the “dead” space above the step. The user-friendly design makes installation a snap, and requires only a few seconds to position for use, making users more efficient. The LB10 Series weighs between 82 to 108 pounds and its weight capacity is 1,000 pounds.

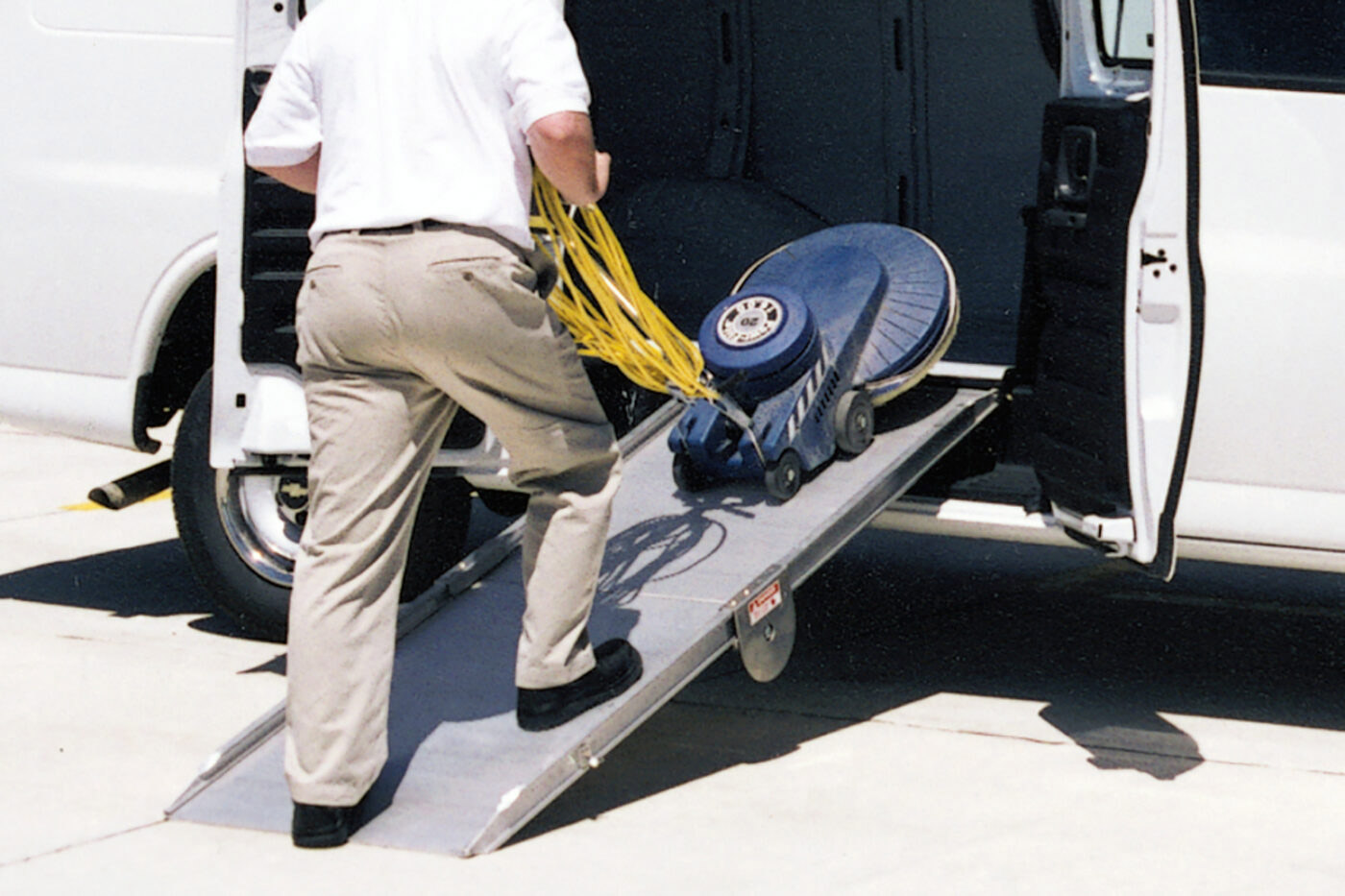

Perfect For Quick Loading & Unloading

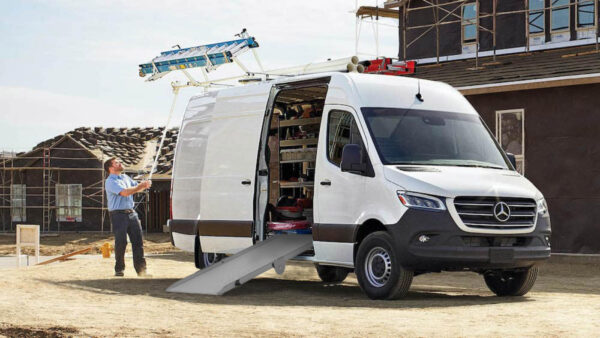

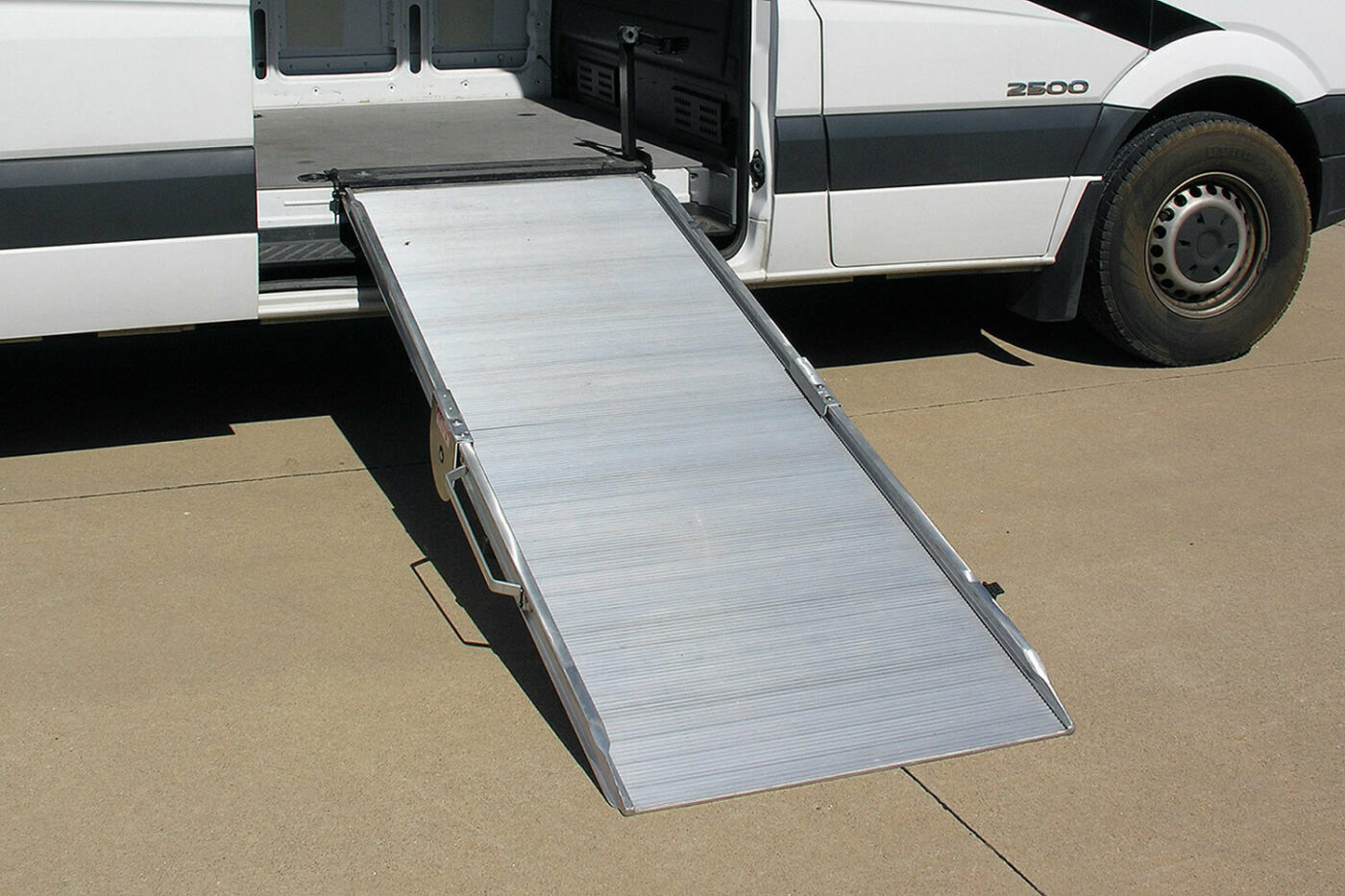

The LB10 mounted ramps are easy to release and deploy with quick-release latches and sturdy hinge points. These mounted ramps work perfectly for vans needing side loading applications.

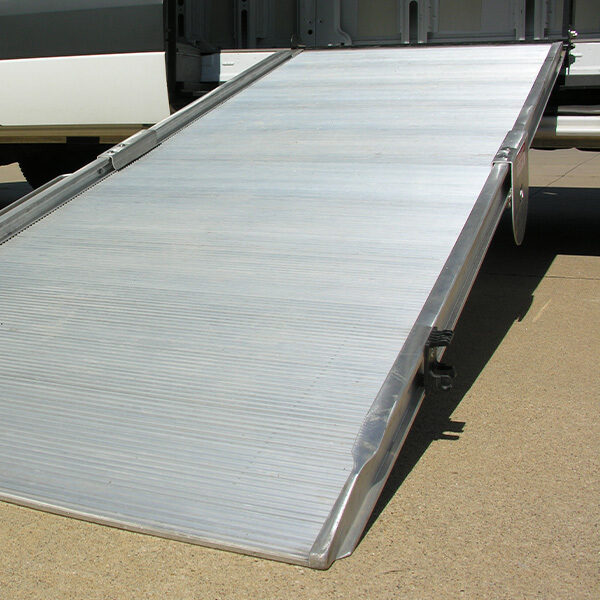

High Strength Aluminum
Link ramps are designed for reliability and durability using extruded high strength steel and state of the art manufacturing processes. Link’s family of mounted ramps provide a safe and economical delivery solution.

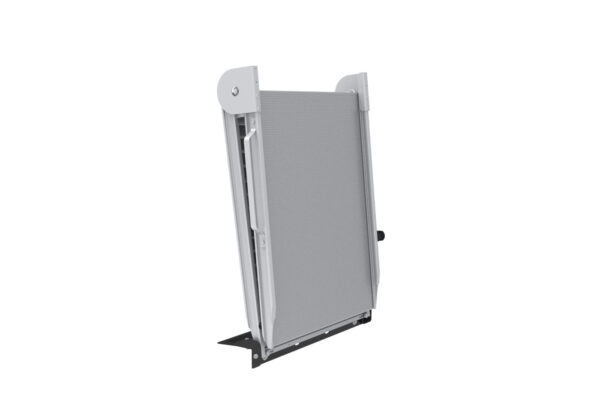

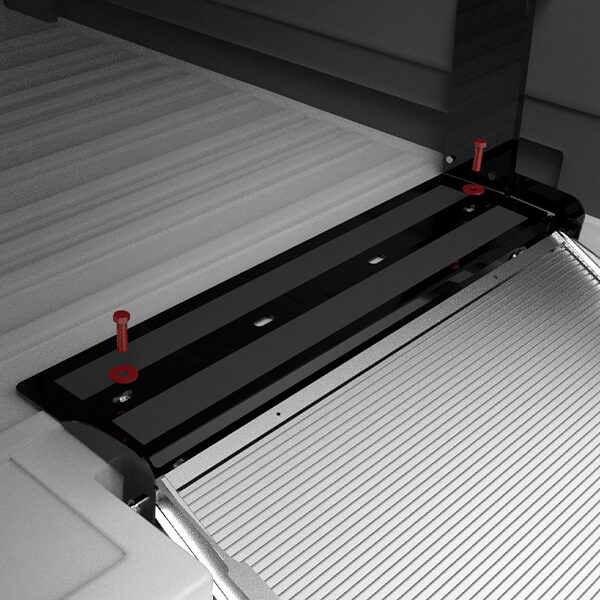

Easy Baseplate Installation
Both the flat floor and side step mounts install easily into any your cargo van with a side step or flat surface baseplate. The unique ramp design stores vertically and only takes 4 bolts in the floor and mounting baseplate to position for use.

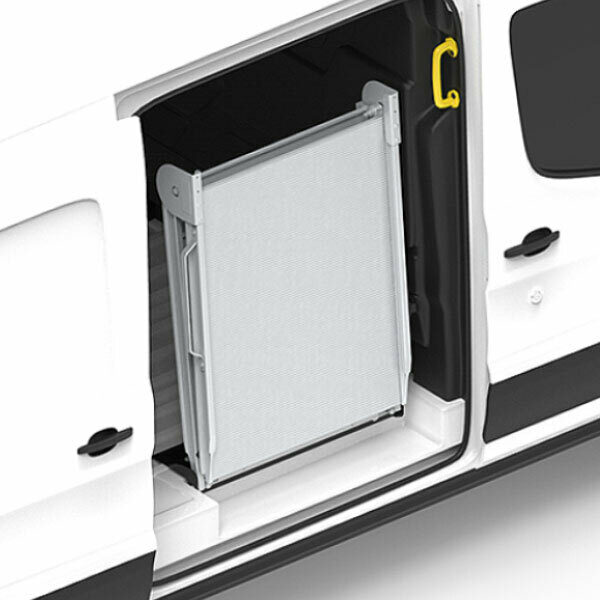

Dead Space Storage
The unique ramp design stores vertically in the dead space of the vehicle. The ramp collapses to roughly 7.5 inches in depth and the baseplate covers 15 inches of side door floor space.

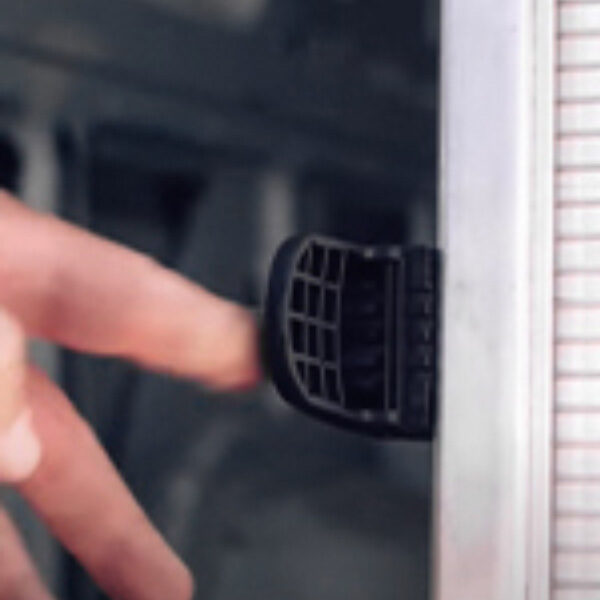

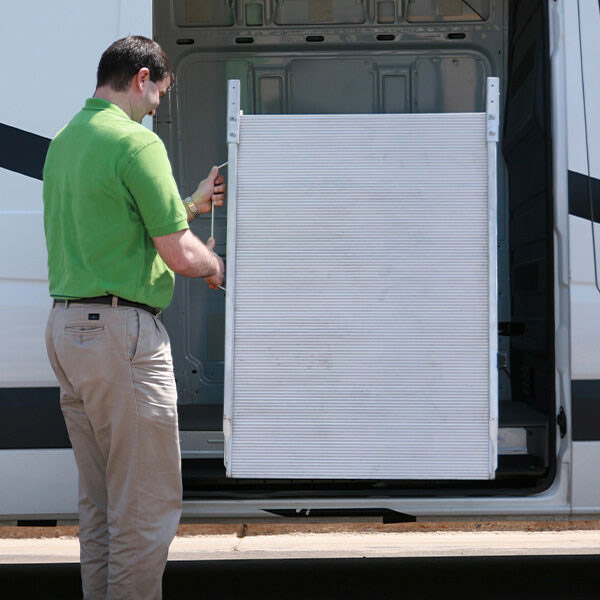

Quick Release Latch
Easily deploy and stow the LB10 with a quick-release latch and sturdy hinge points. The side door ramp provides a safe and economical delivery solution.

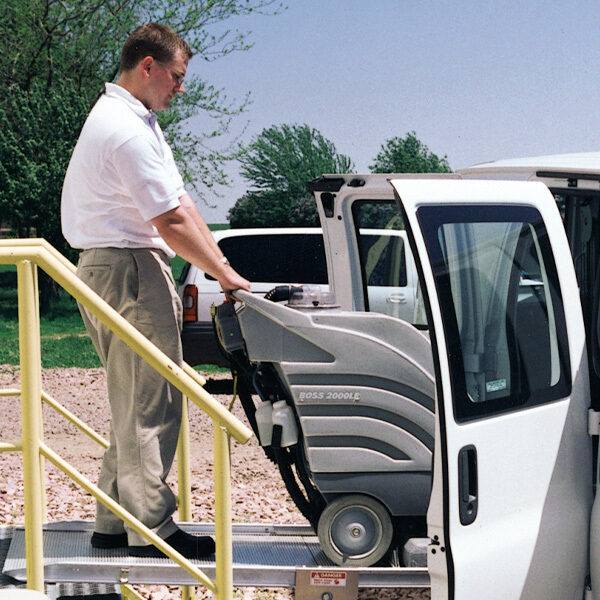

Transition Ramp
The LB10 can be used as a plank on curbs, steps, van-to-van, and more while maintaining full capacity.
Side Door Fit Guide
Please use the chart below to see which size ramp will fit at the side door of your cargo van. If the ramp will fit, the load angle is shown. If it will NOT fit, a red is shown.
Vehicle | Ramp Size | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
24″ Wide | 30″ Wide | 36″ Wide | ||||||||
81″ | 90″ | 81″ | 90″ | 81″ | 90″ | |||||
Chevrolet Express | 20° | 20° | ||||||||
Ford Econoline | 19° | 19° | ||||||||
Ford Transit | 20° | 20° | 20° | 18° | ||||||
GMC Savana | 20° | 20° | ||||||||
Nissan NV | 14° | 13° | 14° | 13° | ||||||
RAM ProMaster | Does Not Fit. Use LB20 instead. | |||||||||
Mercedes Sprinter | 20° | 18° | 20° | 18° | 20° | 18° |
