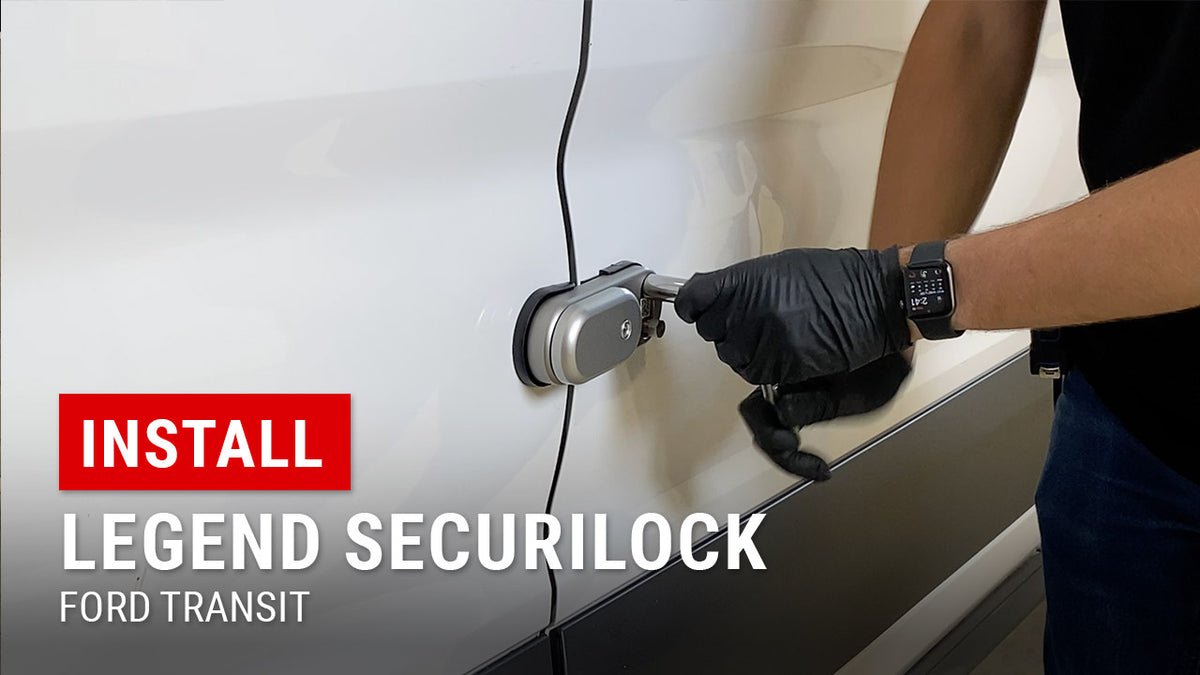

Installing Legend SecuriLock Cargo Van Locks on Ford Transit
|
Posted in Install Videos
Upgrading your Ford Transit’s security is essential for protecting your tools, cargo, and valuable equipment. The Legend SecuriLock Cargo Van Locks provide a heavy-duty theft deterrent system designed to keep your van safe. These high-security locks feature slam lock and deadlock functions, ensuring your van remains protected against break-ins.
In this guide, we’ll walk through installing Legend SecuriLock Cargo Van Locks on a Ford Transit, covering both the side and rear doors for a comprehensive security solution.
Watch the full install video "here.
Why Install Legend SecuriLock Cargo Van Locks?
The Legend SecuriLock system is a must-have for work vans, delivery vehicles, and anyone who stores valuable equipment in their Ford Transit. Here’s why:
- Advanced Security Design – Prevents forced entry by securing doors with heavy-duty steel hasps and locks.
- Slam Lock Function – Automatically locks when the door closes, ideal for high-frequency deliveries.
- Deadlock Feature – Provides additional security by locking the system with a key.
- Anti-Tamper Security Bolts – Snap-off bolts prevent removal without special tools.
- Emergency Release Cable – Allows you to unlock the door from the inside in case of an emergency.
- Vehicle-Specific Fit – Designed to mount securely to the Ford Transit’s factory door structure.
Tools & Materials Needed
Before getting started, gather the following tools:
- Metric socket set
- Drill with 9mm and 10mm (or ⅜-inch) bits
- Step drill bit (for expanding holes)
- Drill stop (to prevent over-drilling)
- Center punch (for marking hole locations)
- Torque wrench
- Allen wrenches
- Deburring tool or file
- Touch-up paint (to prevent rust)
- Plastic pry tools (for interior panel removal)
Step-by-Step Installation Guide
1. Prepare the Side Door for Installation
- Clean the area where the lock will be mounted to remove dirt, grease, or debris.
- Measure 26 cm (260mm) down from the door’s top reference point and mark the center for drilling.
- Position the drilling template sticker and align it with the door gap.
- Ensure the side with five holes is on the sliding door, as this is where the locking mechanism attaches.
2. Drill the Mounting Holes
- Use a center punch to mark the hole locations.
- Start with a small pilot hole, then expand using a 9mm or 10mm drill bit.
- On the fixed part of the van, ensure you drill through both the outer and inner sheet metal layers.
- Deburr the holes and apply touch-up paint to prevent rust.
3. Install the Lock Body & Emergency Release Cable
- Remove the lower interior door panel to access the backside of the mounting area.
- Fit M6 plus nuts into the top and bottom right-side holes.
- Slide the emergency release cable through the lock body’s center hole.
- Loosely install the security bolts that will snap off when fully tightened.
- Insert the two Allen-head bolts through the back of the door into the lock.
4. Attach the Hasp & Reinforcement Plate
- Mount the hasp onto the fixed part of the van where the lock will latch.
- Use the plastic spacer plate provided to ensure proper spacing.
- Secure the hasp bolts by threading them into the reinforcement plate from the inside of the van.
- Before fully tightening, test door closure and lock engagement.
5. Tighten & Secure All Fasteners
- Gradually tighten all bolts while ensuring proper alignment.
- Engage the deadlock function by turning the key to the right and pulling it out.
- Fully tighten the security bolts until they snap off, preventing tampering.
- Attach the Legend branding cover to conceal the bolts.
- Install the dust cap over the lock cylinder, ensuring it faces downward.
6. Repeat the Process for the Rear Doors
- Measure 12 cm from the lower molding and mark the drill points.
- Follow the same steps as the side door installation, ensuring the lock body is mounted on the right-side door.
- Remove the rear interior door panel to access the mounting area.
- Install the hasp, reinforcement plate, and emergency release cable.
- Snap off the security bolts, install the dust cap, and apply the Legend branding sticker.
Why Upgrade to Legend SecuriLock Cargo Van Locks?
1. Enhanced Theft Protection
- High-strength anti-drill and anti-tamper design for ultimate security.
2. Convenient Slam Lock Feature
- Automatically locks the door when shut, reducing security risks in fast-paced work environments.
3. Weather-Resistant & Long-Lasting
- Designed to withstand rain, snow, and extreme temperatures.
4. Easy Emergency Access
Internal release cable allows for quick unlocking from inside the van.
Final Thoughts: Is the Legend SecuriLock Worth It?
If you rely on your Ford Transit for work, securing your van should be a top priority. The Legend SecuriLock Cargo Van Locks provide maximum protection, easy operation, and long-term durability, making them one of the best security upgrades available.
