Installing Legend Steel Door Sills on Ford Transit

Adding Legend Steel Door Sills to your Ford Transit provides enhanced protection, improved durability, and a safer, non-slip step when entering and exiting the van. Whether you're constantly loading cargo or using your van for work, these heavy-duty door sills help prevent wear and tear on high-traffic entry points.

In this guide, we'll walk through installing Legend Steel Door Sills on Ford Transit, covering everything you need to know for a smooth installation.

Watch the full install video "here.

Why Upgrade to Legend Steel Door Sills?

The Legend Steel Door Sills are more than just a visual upgrade—they add essential protection and functionality to your Ford Transit. Here’s why they’re a must-have:

• Durable Steel Construction – Built to handle heavy-duty use without cracking or breaking like plastic alternatives.
• Non-Slip Surface – Designed with a textured finish to prevent slipping, even in wet conditions.
• Easy Installation – Uses factory mounting points for a secure, no-hassle fit.
• Available in Black or Yellow – Choose black for a sleek look or yellow for high-visibility safety.
• Protects Entry Points – Shields the van’s threshold from damage, reducing wear from foot traffic and cargo loading.

Tools & Materials Needed

Before starting, gather the following tools:

• Drill with 1/4-inch drill bit
• Drill stop (set to no more than 1-inch depth)
• Grease pencil or marker
• Torx T25 screwdriver
• Rubber mallet
• Black push-in clips (included in kit)
• Replacement plastic clips (if needed)

Step-by-Step Installation Guide

1. Install the Rear Door Sill

• Position the steel door sill at the rear cargo entrance, ensuring it aligns with the existing van floor.
• Check that the emergency tire release grommet remains accessible through the designated cutout.
• Using a grease pencil, mark the five mounting hole locations on the van floor.
• Remove the sill and drill 1/4-inch holes through the van’s metal floor using a drill stop to prevent excessive depth.
• Reposition the Legend Steel Door Sill over the drilled holes.
• Insert the black push-in clips into the holes to secure the sill in place.
• Use a rubber mallet to ensure the clips are fully seated for a firm hold.

2. Remove the Factory Plastic Step at the Side Door

• If your Ford Transit has a plastic step, remove it by popping off the plastic covers and unscrewing the fasteners.
• If the factory plastic mounting clips remain in place, leave them installed—they will be reused.
• If your van does not have factory clips, use the included replacement clips in the Legend Steel Door Sill kit.

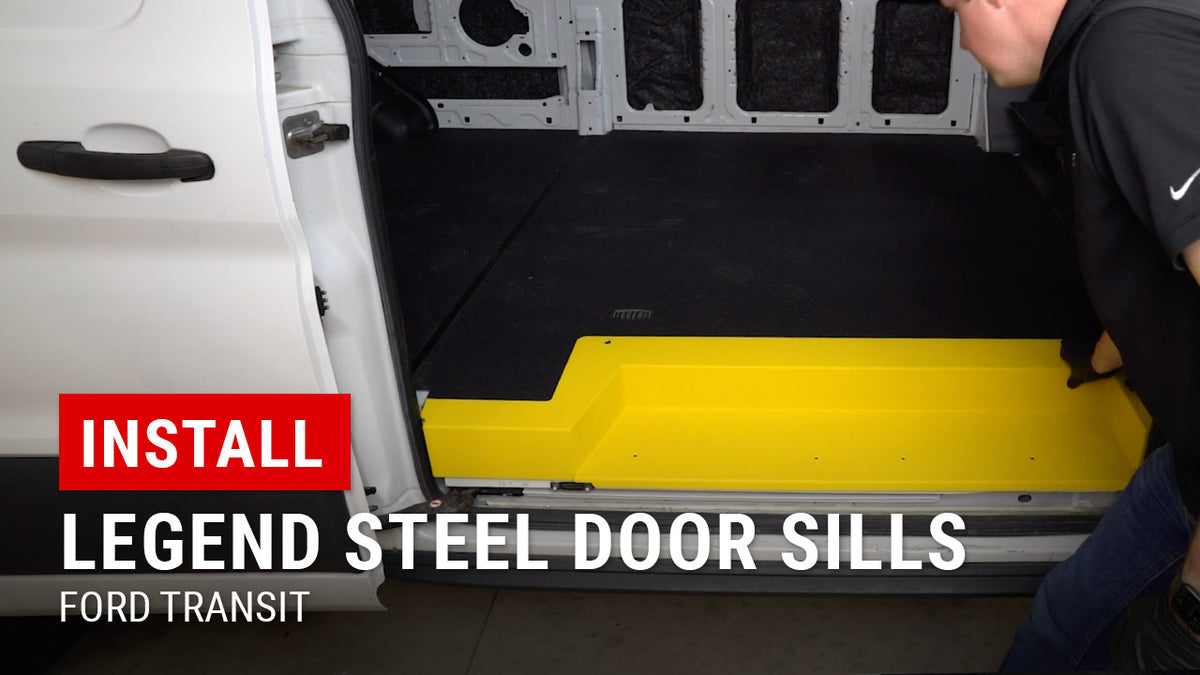

3. Position the Side Door Sill

• Align the Legend Steel Door Sill with the existing step area.
• If your sill includes a full lower step, position it correctly to fit the van’s contours.
• Secure the sill temporarily with hand-threaded screws to maintain alignment.

4. Mark & Drill Mounting Holes

• Use a grease pencil to mark the drill locations based on the sill’s pre-drilled holes.
• Remove the sill and drill 1/4-inch holes through the floor, again using a drill stop to prevent excessive depth.
• Insert black push-in clips into the newly drilled holes.

5. Secure the Side Door Sill

• Reposition the Legend Steel Door Sill over the mounted clips.
• Fasten the Torx T25 screws into the pre-threaded mounting points.
• Follow the torque specifications in the installation guide to ensure proper fitment.

Why Install Legend Steel Door Sills on Your Ford Transit?

1. Heavy-Duty Protection for High-Traffic Areas

• Shields door thresholds from scuffs, scratches, and cargo impact.

2. Non-Slip Safety Surface

• Textured steel prevents slips and falls, making it safer for workers and passengers.

3. Easy, No-Drill Installation

• Uses factory mounting locations—no modifications needed.

4. Custom Fit for Ford Transit

Precision-cut to match the van’s dimensions, ensuring a seamless look.

Final Thoughts: Is the Legend Steel Door Sill Worth It?

If you’re looking for an easy, effective way to protect your Ford Transit’s door sills, Legend Steel Door Sills are a must-have upgrade. They provide superior durability, slip resistance, and a professional finish, making them an excellent investment for commercial and work vans.
