Installing Luverne SolidShield on RAM ProMaster
|
Posted in Install Videos
Protecting the front end of your work van doesn’t just enhance safety—it adds serious style too. That’s why installing the Luverne SolidShield Grille Guard for the RAM ProMaster is a smart upgrade for anyone looking to boost durability and curb appeal. In this guide, we’ll take you through the full installation process—from mounting the brackets to tightening the final bolts. Along the way, we’ll highlight standout features and share pro tips to help you get a clean, secure fit in under two hours.
Why Installing Luverne SolidShield on RAM ProMaster Matters
First, stock bumpers offer minimal front-end protection. Therefore, adding a SolidShield grille guard shields your van from road debris and minor collisions. Additionally, the heavy-duty tubular steel design stands up to jobsite hazards. Furthermore, the corrosion-resistant powder coat keeps your van looking sharp. As a result, you prolong the life of your front fascia and maintain resale value.
Overview of the Luverne SolidShield Grille Guard
The Luverne SolidShield kit includes everything needed for a seamless fit on RAM ProMaster:
-
SolidShield Grille Guard Assembly: Pre-welded, tubular steel guard
-
Mounting Brackets: Driver, passenger, and center frame rail brackets
-
Hardware Kit: Bolts, washers, lock nuts, and riv-nut tool
-
Detailed Instructions: Manufacturer-provided install guide
Although we don’t manufacture this front bumper protector, we carefully select top-tier brands like Luverne. Consequently, you get reliable performance and straightforward installation.
Key Features of the Luverne SolidShield
When installing Luverne SolidShield on RAM ProMaster, you unlock several benefits:
-
Robust Tubular Steel Construction: Withstands daily wear and impacts
-
Corrosion-Resistant Powder Coat: Protects against rust and scratches
-
Precision Fit Brackets: Align with factory frame holes for no-drill install
-
Integrated Light Tabs: Mount auxiliary lights or strobes easily
-
Low-Profile Design: Maintains ground clearance and sleek appearance
Moreover, the grille guard integrates with OEM tow hooks for added versatility.

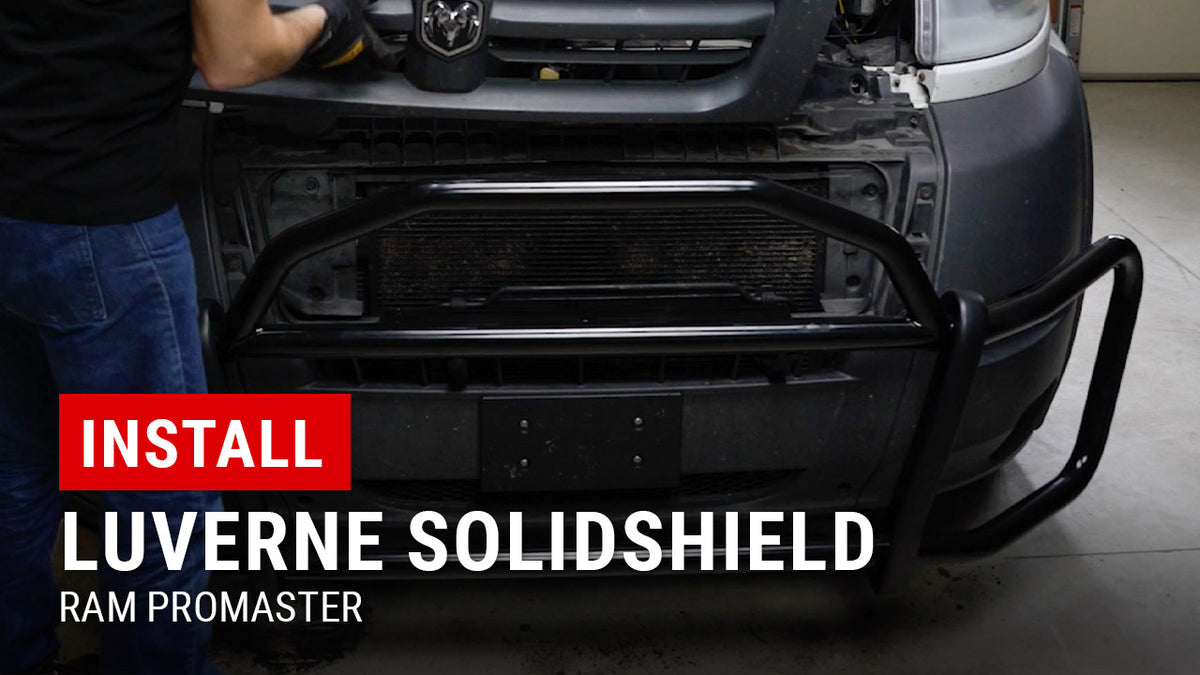

Step-by-Step: Installing Luverne SolidShield on RAM ProMaster
-
Reference the Manufacturer Guide
First, locate the Luverne instructions in your kit. Meanwhile, verify that all brackets and hardware are present.
-
Prep the Front End
Next, remove two 15 mm bolts from each frame rail under the driver and passenger bumpers. Meanwhile, retain factory bolts for reuse.
-
Install Lower Frame Brackets
Then, slide the driver-side bracket into the frame rail. Afterwards, hand-tighten the bolts to allow bracket movement. Repeat on the passenger side.
-
Mount Center Bracket
After that, remove the lower grille panel. Then, insert riv-nuts into pre-drilled top shell holes using the provided riv-nut tool. Next, loosely attach the center bracket.
-
Reassemble Grille Fascia
Now, reinstall the grille and plastic panel. Ensure center bracket passes behind trim without pinching wiring.
-
Position the SolidShield Guard
Lift the grille guard assembly onto installed brackets. Meanwhile, align the guard’s mounting tabs with bracket slots.
-
Secure with Carriage Bolts
Next, insert carriage bolts through guard tabs and bracket holes. Then, add washers and lock nuts, leaving all hardware snug but adjustable.
-
Final Alignment and Torque
Finally, center the guard on the front fascia. Meanwhile, verify door latch clearance. Then, torque lower frame bolts to 50 ft-lbs and carriage-bolt nuts to 35 ft-lbs.
By following this sequence, you achieve a rattle-free, durable installation.
Pro Tips for a Smooth SolidShield Install
-
Work with the Hood Open: Provides better access to upper grille bolts.
-
Use Blue Loctite: Prevents vibration-induced loosening on all hardware.
-
Label Your Bolts: Mark each bracket location to speed reassembly.
-
Check Clearance: Close the hood gently to ensure no contact.
-
Perform a Wash Test: After installation, rinse off any metal shavings to prevent rust.
Additionally, adding auxiliary LED lights to the integrated tabs enhances nighttime visibility.
Maintenance for Your Luverne SolidShield
After installing Luverne SolidShield on RAM ProMaster, keep it in top shape:
-
Wash Monthly: Remove road salt and debris to prevent corrosion.
-
Inspect Welds: Check for cracks or chips in the powder coat.
-
Retorque Hardware: Verify tightness every six months under heavy use.
-
Touch-Up Paint: Spray black enamel on any exposed steel areas.
These simple steps ensure your grille guard remains functional and attractive.
Protect Your ProMaster with SolidShield
At Upfit Supply, we know that installing Luverne SolidShield on RAM ProMaster transforms your van into a fortified, professional workhorse. With heavy-duty steel, precision-fit brackets, and auxiliary light integration, this guard delivers unmatched protection. Ready to upgrade your van’s front end? Explore the product and tutorial below:
- Luverne SolidShield Grille Guard for RAM ProMaster
-
Watch the Tutorial: Installing Luverne SolidShield on RAM ProMaster
With Upfit Supply, you get solutions that work as hard as you do—no exceptions.
