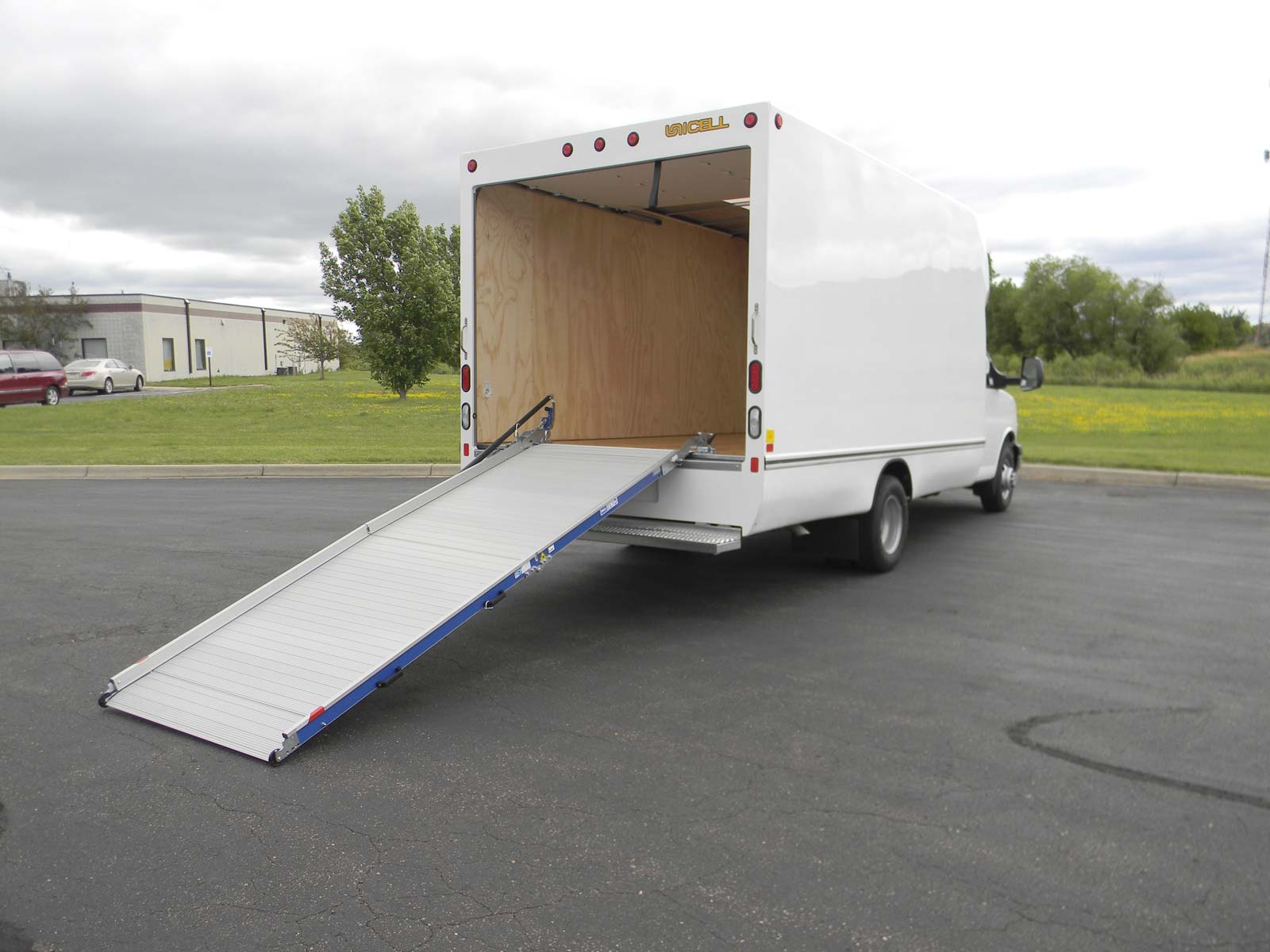

Aluminum Loading Ramp for Box Trucks

Strong, lightweight, folding aluminum loading ramp for box trucks, capable of loads up to 2,200 lbs. (see chart below for full specs).

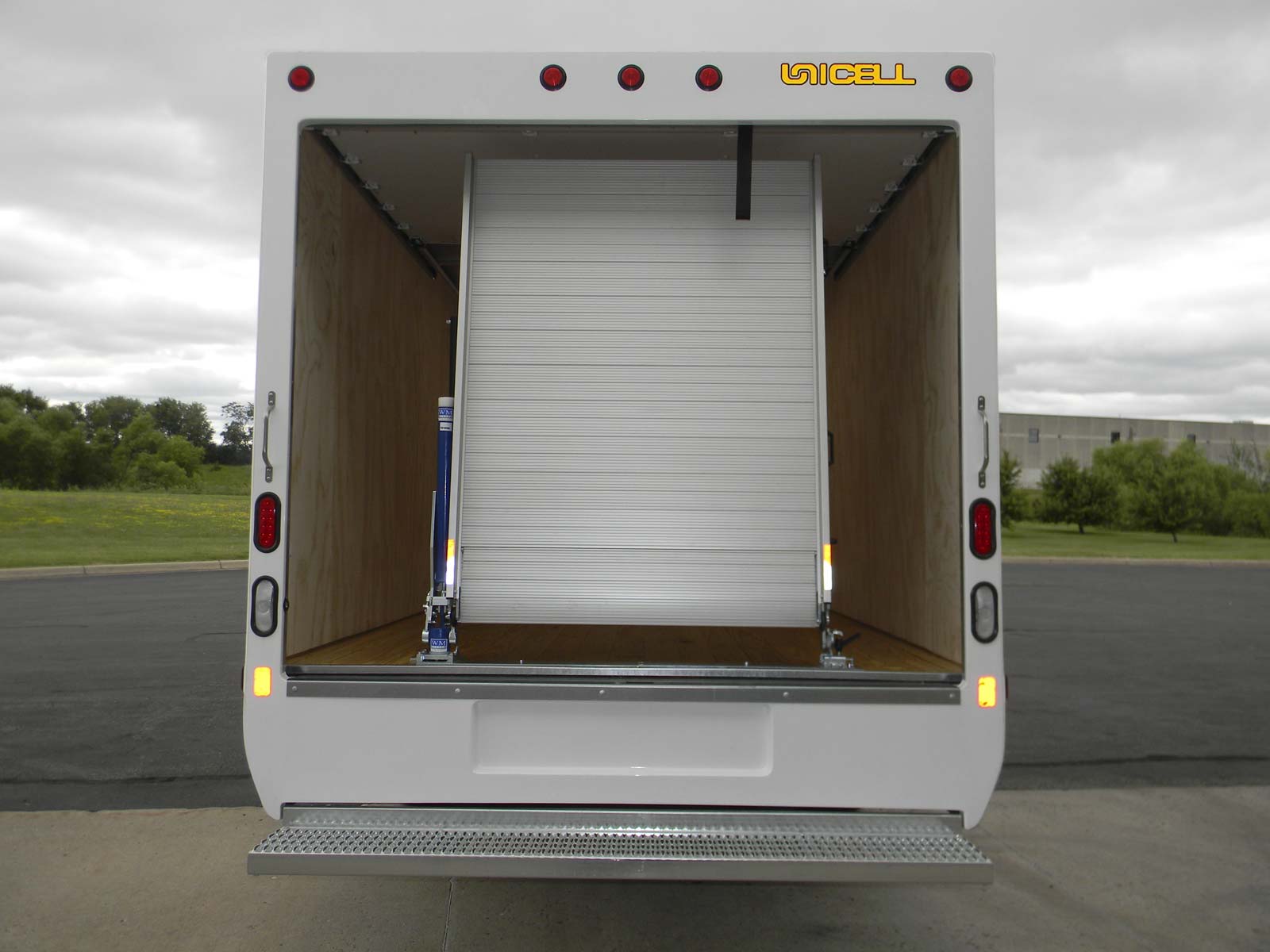

The WM Light Plus ramp is constructed from reinforced aluminum making it lightweight and very easy to use due to its patented spring-assisted system. The built-in swivel feature allows the ramp to pivot externally at 90 degrees giving the operator full access to the rear of the vehicle when required. The anti-slip surface provides a safe loading platform with raised lateral anti-fall edges increasing load safety.

The ramp is equipped with two contact flaps. The first movable contact flap connects perfectly to the floor of the truck, assuring perfectly smooth transition between ramp and vehicle. The second flap – which connects the ramp to the ground – is straight and fixed. This ramp is suitable for all types of equipment, especially equipment with low ground clearance and small size wheels.

Features

• Anti-slip anodized aluminum platform
• Built-in spring assist for easy deployment
• Movable contact plate to connect ramp to the cargo floor
• Two wheels for easy deployment
• 2-5/16" high safety edges
• Available with solid and perforated platforms
• Available with left- and right-hand swivels
• 2 year warranty

Applications

• Moving truck walk ramp
• Landscape ramp for box truck
• Hand truck ramp for any industry

Ramp Specifications

SKU	Ramp Width	Ramp Height	Weight Capacity	Stored Height	Ramp Weight
WMS-9ALPC229BOX	37-in	126-in	1,500 lbs.	67.75-in	175 lbs.
WMS-9ALPC279BOX	47-in	126-in	1,500 lbs.	68-in	200 lbs.
WMS-9ALPC229/PERF/BOX	37-in	126-in	1,500 lbs.	67.75-in	175 lbs.
WMS-9ALPC278/PERF/BOX	47-in	137-in	880 lbs.	76-in	200 lbs.
WMS-9ALPC279/PERF/BOX	47-in	126-in	1,300 lbs.	68-in	200 lbs.
WMS-91634	54-in	128-in	2,200 lbs.	68.2-in	375 lbs.
