Upgrade Your Ford Transit with the Best Retractable Van Step

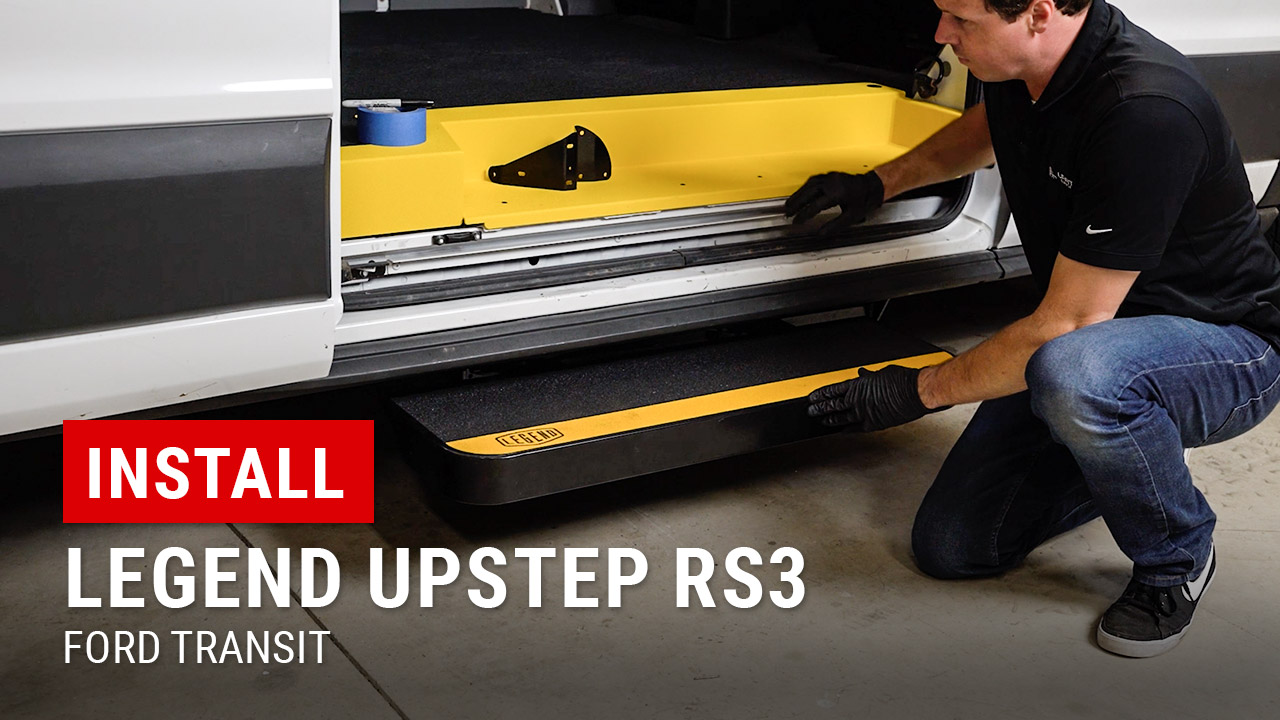

Installing Legend UpStep RS3 on our Ford Transit is a game-changer for those who frequently enter and exit their van. This Ford Transit automatic step extends when the side door opens and retracts when the door closes, ensuring hands-free convenience and enhanced safety.

This step-by-step Legend UpStep installation guide will walk you through the process of securely mounting this retractable van step onto your Ford Transit, making access easier and more efficient.

Watch the full install video here.

Why Choose the Legend UpStep RS3 for Your Ford Transit?

The Legend UpStep RS3 is designed to offer seamless access to your van with its automatic deployment and retraction. Here’s why it’s the best step for Ford Transit owners:

  • Hands-Free Operation – Deploys and retracts automatically when the Ford Transit side door opens and closes.
  • Heavy-Duty Construction – Built with steel brackets and an aluminum step for durability.
  • Non-Slip Surface – Provides a secure grip, even in wet conditions, reducing the risk of slips.
  • Universal Fit with Custom Brackets – While the step is universal, the brackets are Ford Transit-specific for a perfect fit.
  • No Electrical Components – Unlike powered steps, this Ford Transit retractable step operates mechanically, ensuring long-lasting performance.

Tools & Materials Needed for the Legend UpStep Installation

Before starting, gather these tools:

  • Metric socket set
  • Torque wrench
  • Allen wrenches
  • Drill with metal bits (if mounting holes are not pre-drilled)
  • Thread tap set (for threading new holes in the frame)
  • Floor jack (to assist with positioning the step)
  • Painter’s tape (to protect the van’s door during drilling)

Pro Tip:

Scan the QR code on the Legend UpStep RS3 box to access the full installation guide for your Ford Transit model.el.

Step-by-Step Installation Guide for the Legend UpStep RS3

1. Prepare the Step Assembly

  • Attach the mounting brackets to the step before installation.
  • Position the outboard brackets on the inside of the built-in step frame and loosely secure them with three hex bolts and locknuts per bracket.
  • Position the inboard brackets on the outside of the built-in step frame and secure them with two bolts and locknuts.
  • Leave the bolts slightly loose to allow for easier alignment during installation.

2. Position the Step Under the Van

  • Use a floor jack to lift the Ford Transit automatic step into place.
  • Align the rocker panel brackets with the factory mounting studs under the van.
  • If your Ford Transit does not have factory studs:
    • Mark and drill mounting holes.
    • Install plus nuts to create secure attachment points.
  • Loosely secure the step to the rocker panel for later adjustments.

3. Secure the Brackets to the Vehicle Frame

  • Identify the correct mounting holes on the Ford Transit’s frame rail.
  • Some Transit vans have pre-drilled holes, while others require drilling.
  • If drilling is needed:
    • Mark the hole locations.
    • Drill using an 8.5mm or 12mm bit.
    • Tap threads using an M10 x 1.5 tap.
  • Secure the retractable van step using the provided bolts, washers, and lock washers.

4. Tighten All Mounting Hardware

  • Ensure brackets are flush against the rocker panel and frame rail.
  • Fully tighten all bolts on the brackets and Legend UpStep RS3 assembly to secure everything in place.

5. Attach the Door Bracket

  • Use painter’s tape to protect the door’s surface while marking drill locations.
  • Position the door bracket so its bend aligns with the van’s door crease.
  • Mark the drill points and use a ¼-inch drill bit to create mounting holes.
  • Deburr the holes and apply touch-up paint to prevent rust.
  • Secure the door bracket with button-head screws, washers, and locknuts.

6. Install and Adjust the Linkage Arm

  • Insert plastic bushings into the linkage arm for smooth operation.
  • Attach the linkage arm to the door bracket and step assembly using the included hardware.
  • Install the stop bolt to prevent overextension.
  • Ensure the linkage arm moves freely without resistance.

7. Test the Legend UpStep RS3 for Proper Functionality

  • Open the side door to deploy the Ford Transit retractable step.
  • Close the door to retract the step.
  • The step should fully extend and retract smoothly.
  • If adjustments are needed, check the linkage alignment and make necessary tweaks.

Why Install the Legend UpStep RS3 on Your Ford Transit?

1. Hands-Free Automatic Operation

  • Deploys when you open the door and tucks away when closed.
  • No buttons, switches, or manual adjustments needed.

2. Safer and More Convenient Entry & Exit

  • Reduces the step-up height for easier access.
  • Ideal for delivery drivers, fleet vehicles, and commercial use.

3. Heavy-Duty & Weather-Resistant Design

  • Durable construction designed for Ford Transit vans.
  • Weather-resistant materials prevent rust and corrosion.

Final Thoughts: Is the Legend UpStep RS3 the Best Step for Ford Transit Vans?

The Legend UpStep RS3 is a must-have upgrade for Ford Transit owners who need safer and more convenient access to their van. Its automatic deployment, durable construction, and easy installation make it an excellent investment.

If you’re looking for the Legend UpStep RS3 or other van upfit accessories, check out Upfit Supply today!
