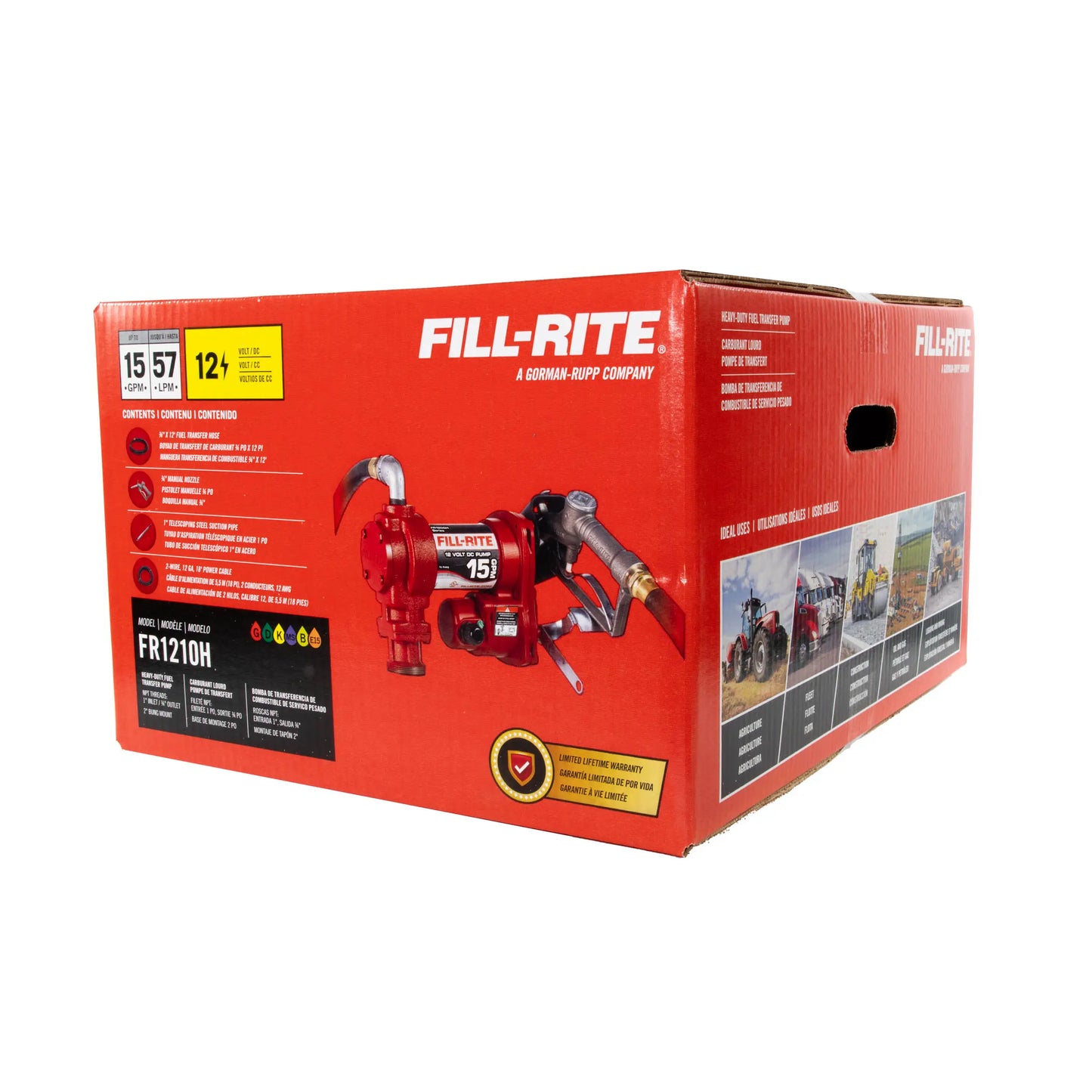

The FR1210H model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components.

• Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
• Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons
• Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
• Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
• Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces
• Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
• Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
• Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
• Limited Lifetime Warranty – we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.

Performance Data

Outlet Size / Connection / Thread	0.75 " / Female / NPT
Mounting Size / Thread / Type	2" / NPT / Bung Mount
Duty Cycle (min)	30 min on / 30 min off
Power Source	Electrical
Motor Power (HP)	0.25
Max Current (A)	20 A
Thermal Protection Switch	Yes
Self Priming	Yes
Suction Lift (ft.)	8 '
Dry Vacuum (in. Hg)	5
Operating Temperature Range (°F)	--
Discharge Head (ft)	37 '
Strainer Mesh Size (Micron)	20x20
Max Operating Pressure (PSI)	16
Viscosity Range (cSt)	1 to 4
