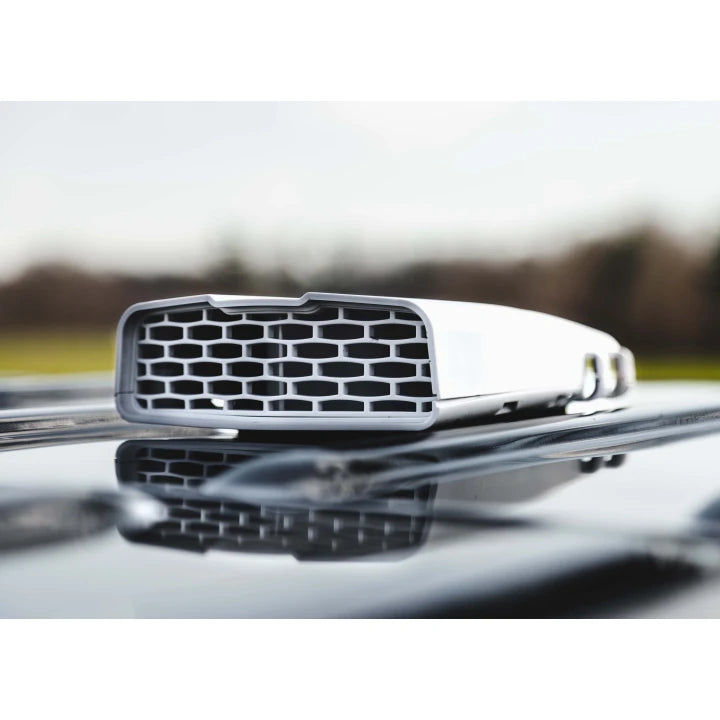

The VanFan provides a healthy ventilation solution for your commercial work van. By filtering harmful gases, mitigating extreme heat, and removing moisture, the VanFan is a driver’s best friend. Our two product versions – the base VanFan and add-on VanFan Electric – work overtime to ensure a constant cycle of fresh air is rotating through your cargo space.

• The VanFan removes irritating odors, moisture, gas and air vapors all while maintaining a comfortable cargo space temperature and providing a fresh air supply while you drive.
• The intuitive Push – Pull effect maximizes air intake and output to filter the entire cargo area using forced air

The VanFan does not require a floor drain. Instead, providing all of the air circulation through a rooftop unit

Installing the VanFan requires three simple steps: mark out and punch a 3 1/2” hole, seal and insert unit through hole, screw cover plate on from inside the cargo space. Done!

• Low profile vent works perfectly with ladder rack without getting in the way
• Better for clearance from overhead objects

FAQs

Does the VanFan need a floor drain?

No. Thanks to the innovative push-pull technology, all air is filtered in, and out via the rooftop unit. There is no need for a floor drain making it ideal for easy installation - especially in EV’s.

Does the VanFan work with ladder racks?

As a general rule of thumb, yes, the VanFan does work with a majority of ladder racks. We cannot ensure universal compatibility only because of the varied design differences observed in ladder racks. For example, ladder racks that boast wind deflectors (which if our vent is underneath) will dramatically affect airflow to the vent.

How many vents would you recommend for my van?

For a standard van, we recommend two VanFan units located at the front right, and back left of the roof. This application optimizes air flow throughout the cargo space and takes full advantage of the vortex air circulation generated through push-pull technology.

Can the VanFan be opened and closed?

Yes, the base VanFan can be opened and closed, but the electric module add-on cannot.

Does the electric module have to be paired with the vent? Or can it be installed separately?

You can install the VanFan with no electric module. However, to install the electric module add-on you must also have the VanFan base unit.

Does the push-pull technology apply to both modules, or just the vent?

The VanFan push-pull technology applies to both units. The difference is the application. Our base VanFan unit requires the vehicle to be in motion in order for the forced air circulation to occur. Whereas, the VanFan Electric is able to operate even when the vehicle is stationary.

How long does it take to install the VanFan?

VanFan - Approximately 50mins

VanFan Electric - Depends on wiring. Will be comparable to base VanFan but depends heavily on installation specifications and wiring requirements - case by case.

Are there pre-cut holes in our ceiling liner for installation?

There are no pre-cut holes in our ceiling liner to aid in VanFan installation. The reason for this is because of the variety of applications and installation situations. Because each upfit is custom, the vents will be installed in different places (ladder racks, shelving, etc.)

Can I use silicon to seal my vent?

No, do not use silicon to seal your VanFan. Silicon can cause serious problems! The foam gaskets provided are more than enough for the vent to be water tight. No additional sealant is necessary.

Is there a solution for roofs that have higher ribs, or different spacing?

There is a 16mm foam gasket available for difficult roof ribs.

Is there a switch/wiring harness that comes with the module?

Not currently. How the wiring is done is entirely up to the upfitter as per the customers needs. Some may opt to have the electric module hooked up to a sensor that detects temperature, RPM, or harmful gasses, so the VanFan will turn on situationally. Others may opt for different applications.

Where on my van roof should I install the VanFan?

If installing only one unit, the best location would be in the middle of the roof (or as close as possible).

If installing two, it is recommended to put them diagonally from each other, in opposite corners of the roof. Often the preferred location is the front right corner, and back left (20in off the partition).

Our vents fit between the ribs on Sprinters and Transits, but become narrow when dealing with new ProMaster models.

Will dust get into my van through the VanFan?

The VanFan does not come with a built-in filter. This means it is possible for dust to make it’s way into the cargo area of your van. However, the VanFan does come with the ability to close the unit off from the cargo space in the event of a storm.
