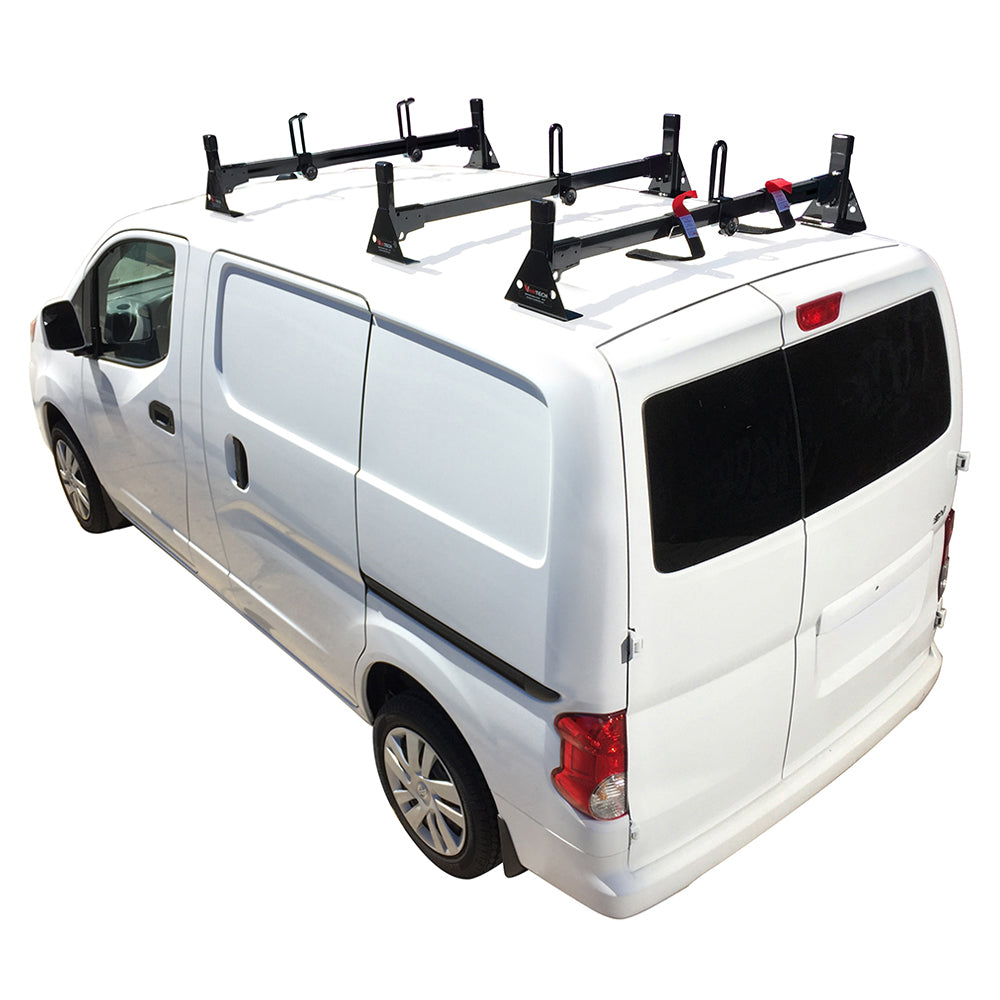

The Vantech H1 system for the Nissan NV200. The Cross bars is 2″ X 1″ Heavy Duty Extruded Aluminum. The Cross bar is protected by non-slip rubber bar guard on top. Mounting upright are 11 gauge at the base and are galvanized before powder coating. The Base is welded complete onto the upright post for complete seal. There are 4X 3/4″ eyehook on each upright mounts. Each mount is installed onto NV200 via factory mounting points with a M8 Bolt. Rubber cap on the upright post prevents wind noise. The system Includes 5″ ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5″ ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Hook & loop straps secure ladders within seconds up to 75 lbs. * Does not fit the Full Size Nissan NV Cargo Van.

The Vantech H1 system uses 2″ X 1″ rectangular bars. The Cross bar is protected by bar guard on cross bars. The Mounting uprights are 8″ X 2″ extra wide base at 10.5″ total height. The Base is welded complete onto upright post for complete seal. There are 4X 3/4″ eyehooks per mounting upright. No drilling required for installation. Rubber cap on the upright post prevents wind noise and water leakage.
