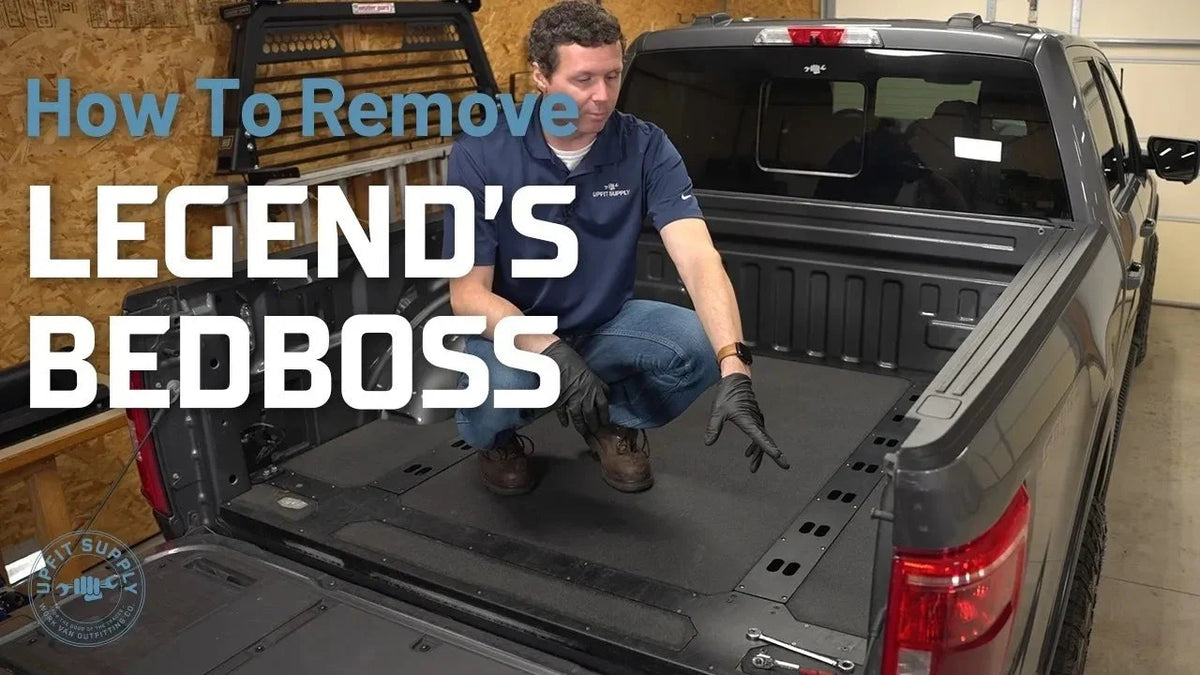

How To Remove Legend's BedBoss from a Ford F-150

Last updated June 30, 2026

Tags: BedBoss F-150 Ford How To Legend Fleet Solutions Truck Bed Rigid Floor Video

Why You Would Remove the BedBoss

The Legend BedBoss is built strong enough and lasts long enough that when you eventually trade in your truck for a new one, you can simply remove the entire unit and reinstall it in the new vehicle, as long as the bed dimensions between the two trucks match up. Bed dimensions often stay consistent from year to year on the same truck model and bed configuration, so if your new truck has the same bed length and bed style as your old one, the BedBoss can move with you to the new truck rather than getting left behind, thrown away, or repurchased from scratch at full cost.

Step-by-Step Removal

Removing the BedBoss uses the exact same tools you used to install it in the first place, so there is no special equipment needed beyond what you already have on hand from the original install. The process itself is straightforward: detach the mounting brackets from both the BedBoss structure itself and from the mounting locations in the truck bed, remove those brackets completely, and then lift the entire BedBoss assembly out of the bed in one solid piece. Because it is heavy and built from a steel-reinforced composite, this is genuinely a two-person job unless you have access to a forklift or a tractor equipped with forks. With two people working together, it comes out cleanly without much trouble or risk of damage.

What You'll Find Underneath

Once the BedBoss is fully removed, you will likely find some debris that has accumulated underneath it from regular use over time, but the actual truck bed surface itself underneath stays remarkably well protected. In this particular case, toolboxes had been mounted directly into the BedBoss using its built-in nutsert system rather than being drilled into the truck bed floor, which meant there were no holes whatsoever in the actual bed metal, just a clean factory surface that hosed out easily, leaving what is essentially a like-new bed underneath after years of use.

That protection is really the larger point of running a BedBoss in the first place: it absorbs the wear, hosts the mounting holes for accessories, and takes the daily abuse, so the truck's actual factory bed floor stays in original, undamaged condition the entire time you own the vehicle. When it comes time to trade trucks, that preserved bed condition directly adds to resale value, and the BedBoss itself comes along for the ride to your next truck rather than staying behind as a sunk cost.

Frequently Asked Questions

Do I need any special tools to remove the BedBoss?

No. Removal uses the exact same tools required for the original installation, so if you have those tools on hand from when you first installed it, you are fully equipped to remove it as well.

Can one person remove the BedBoss alone?

It is not recommended. The BedBoss is heavy due to its integrated steel frame, and lifting it out of the bed alone risks both personal injury and damage to the unit or the truck. Plan for two people unless you have mechanical lifting equipment available.

Will removing the BedBoss damage my truck bed?

No, that is the entire point of the system. Because accessories mount into the BedBoss itself using nutserts rather than being drilled directly into the truck bed, the factory bed floor underneath remains undamaged and free of extra holes throughout the life of the install.

How do I know if the BedBoss will fit my new truck?

Compare the bed length and bed style (such as short bed versus long bed) between your old and new truck. If those measurements match, the BedBoss should transfer over directly. If your new truck has a different bed length or configuration, you may need a different size BedBoss.

Looking for the Legend BedBoss for your truck? Find it at Upfit Supply.
