Link

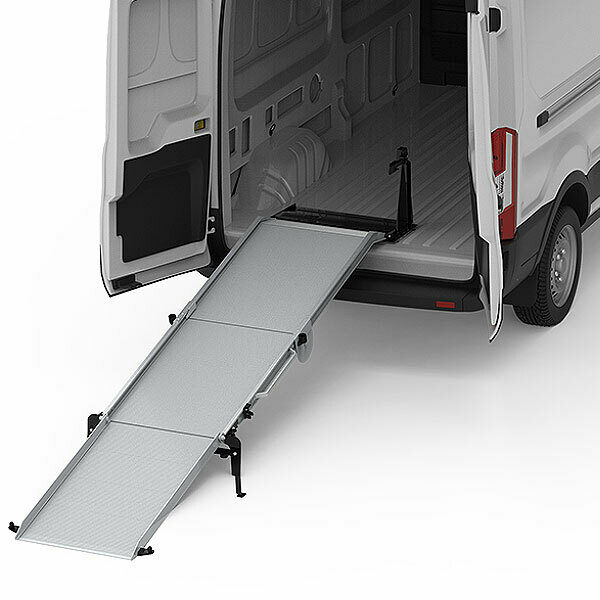

Link LT30 Trifold Rear Door Mount Cargo Van Ramp

(1 customer review)

$1,845.00$2,024.00

Found a lower price? Request a price match

-

Ships LTL (5-7 Days In Transit)
Link ramps ship within 4 weeks.Mfg. P/N: N/AUPC: SKU: LIN-LT30 Categories: , , Tag:
Expert Phone & Chat Support M-F 9a-5p (EST)
Easy Return Policy Return within 30 days (see details)
Secure Checkout Pay Securely with Credit Card or Paypal

Description

Link Manufacturing has developed a broad array of deployable mounted aluminum ramp solutions engineered for cargo vans. Link’s lightweight, low profile mounted aluminum ramps vertically mount just inside a vehicle’s rear doors. Each mounted ramp is made from high-strength aluminum and engineered for simple installation and ease of use.

All Link mounted ramps are fast, easy and convenient to deploy, use and stow. By stowing vertically inside the vehicle’s cargo hold, the ramp is not exposed to the weather or road debris and takes up less than 12 inches of horizontal space.

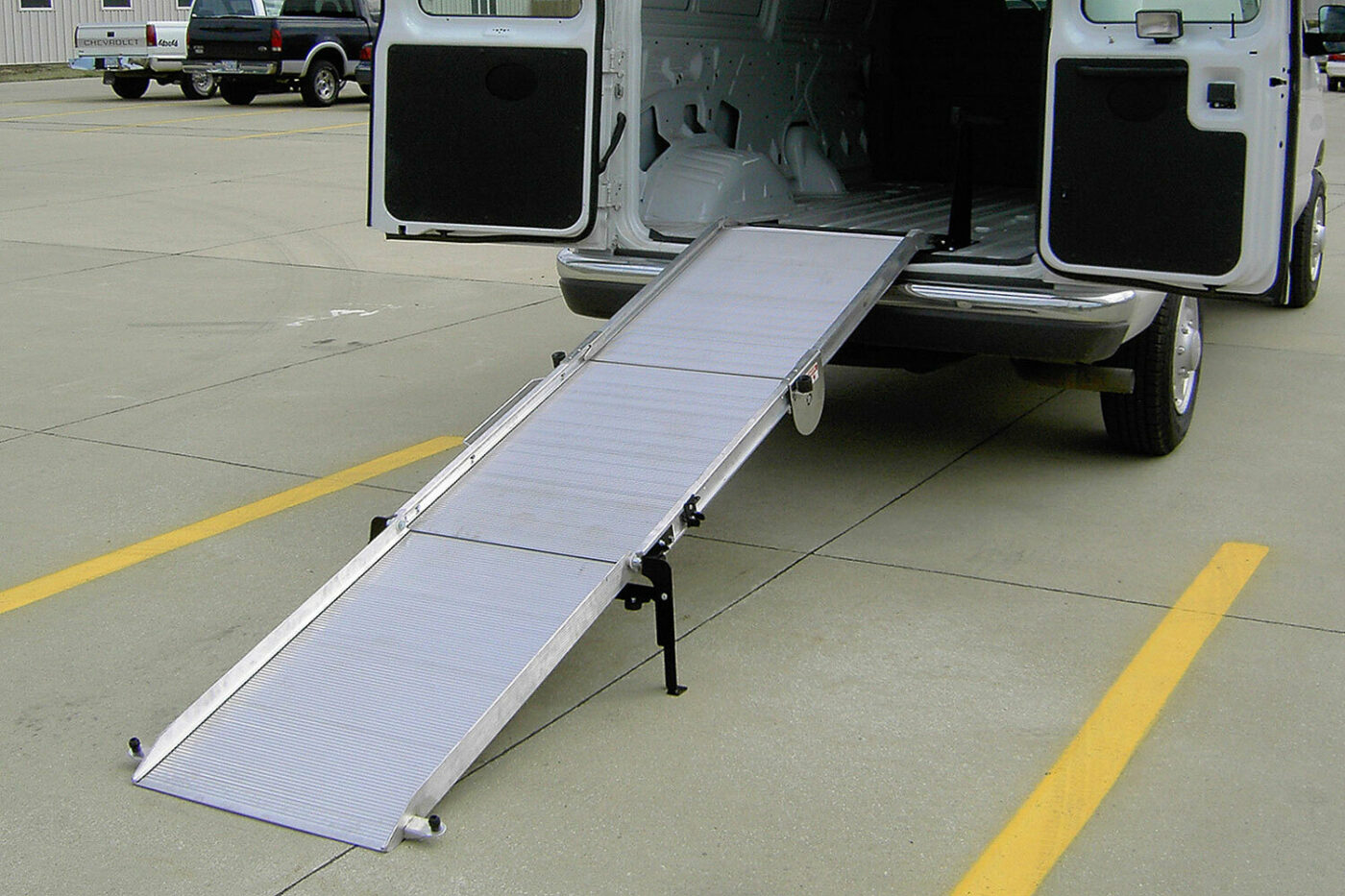

The LT30 Series ramp is a high-strength aluminum, surface-mount ramp that installs easily into any vehicle with a flat surface. The trifold design of the ramp allows it to easily store vertically inside the vehicle. The adjustable leg gives the option for shallow load angles. If needed, the ramp can be removed in less than a minute. The LT30 Series ramps weigh between 110 to 140 pounds with a weight capacity of 1,000 pounds.

All LT30 Series trifold ramps are 119″ in length and can be purchased in 24″, 30″ or 36″ widths.

High-Strength Aluminum

LT30 is designed for reliability using extruded high strength steel. The extensive line of LT30 sizes provides an option for most applications.

Easy Baseplate Installation

The LT30 mounts easily on a flat surface and covers only 15 inches of floor space. The baseplate requires 4 bolts in the floor to install for use.

Link LT30 Adjustable Leg

Adjustable Leg

The included adjustable leg gives the option for shallow load angles.


Quick Unloading & Loading

The LT30 is easy to release and deploy with quick-release latches and sturdy hinge points.

Dead Space Storage

The LT30 ramp folds in half and stores vertically in the dead space of the vehicle. The tri-fold ramp collapses to roughly 7.5 inches in depth.

Link LT30 Trifold Ramp Specifications

Model Ramp Width Height Stored Baseplate Depth Baseplate Width Weight Weight Capacity
LT30-24-119 24″ 46.75″ 15″ 30.25″ 110 lbs. 1,000 lbs.
LT30-30-119 30″ 46.75″ 15″ 36.25″ 125 lbs. 1,000 lbs.
LT30-36-119 36″ 46.75″ 15″ 42.25″ 140 lbs. 1,000 lbs.

*All Link LT30 Ramps are 119″ length ramps.

Additional information

Brand

Link

Base Plate Depth (inches)

15

Base Plate Width (inches)

30.25, 36.25, 42.25, 30.25, 36.25, 42.25

Collapsed Width (inches)

7.5

Height Stored (inches)

46.75

Mount Location

Rear Door

Ramp Length

119-in

Ramp Width

24-in, 30-in, 36-in

Ramp Style

Trifold

Warranty

1 Year Warranty

Weight Capacity

1,000 lbs.

1 review for Link LT30 Trifold Rear Door Mount Cargo Van Ramp

  1. Hayde Tostado (verified owner)

Add a review

Your email address will not be published. Required fields are marked *

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

This Product Fits The Following Vehicles

MakeModelYear
ChevroletExpress 15001997-2022
ChevroletExpress 25001997-2023
ChevroletExpress 35001997-2023
FordE-1501992-2014
FordE-2501992-2014
FordE-3501992-2014
FordE-4501992-2014
FordTransit-1502014-2023
FordTransit-2502014-2023
FordTransit-3502014-2023
FordTransit-350 HD2014-2023
GMCSavana 15001997-2022
GMCSavana 25001997-2023
GMCSavana 35001997-2023
Mercedes-BenzSprinter 15002018-2023
Mercedes-BenzSprinter 25002007-2023
Mercedes-BenzSprinter 35002007-2023
Mercedes-BenzSprinter 3500XD2017-2023
Mercedes-BenzSprinter 45002018-2023
NissanNV15002011-2022
NissanNV25002011-2022
NissanNV35002011-2022
RAMProMaster 15002014-2023
RAMProMaster 25002014-2023
RAMProMaster 35002014-2023

Installation Details

Installation Instructions

Download Instructions
