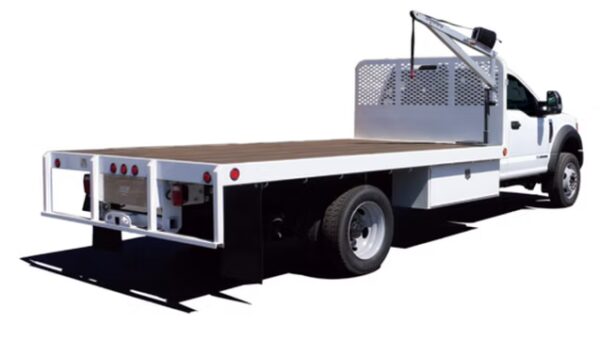

The SpitzLift Platform Truck Crane with Horizontal Pedestal Mount is engineered for heavy-duty lifting applications on flatbed and platform trucks. This versatile crane system offers a substantial 900 lb (408.2 kg) lifting capacity while maintaining a lightweight profile, ensuring minimal impact on your vehicle’s payload.

Key Features:

• High Lifting Capacity: Capable of lifting up to 900 lbs (408.2 kg), suitable for various heavy-duty applications.
• Lightweight Construction: The crane system has an installed weight of approximately 83 lbs (37.7 kg), preserving your vehicle’s payload capacity.
• 360° Rotation: Provides full rotational capability for versatile positioning during loading and unloading operations.
• Durable Materials: Constructed from aircraft-grade aluminum and steel with a clear anodized and powder-coated finish for enhanced durability and corrosion resistance.
• Compliance and Safety: Manufactured in accordance with OSHA and ASME standards, ensuring reliable and safe operation.
• Efficient Operation: Features a 12V DC powered hoist (Model LTD-424) with a lifting speed of 22.5 ft/min (6.858 m/min), controlled via a 10 ft (304.8 cm) pendant controller.

Specifications:

• Max Lifting Capacity: 900 lbs (408.2 kg)
• Installed Weight: Approximately 83 lbs (37.7 kg)
• Rotation: 360° Continuous
• Lifting Speed: 22.5 ft/min (6.858 m/min)
• Power Requirements: 12V DC @ 70 Amps
• Materials: Aircraft-grade aluminum and steel
• Finish: Clear anodized and powder-coated
• Warranty: 3-year limited warranty

Included Components:

• 4 ft SpitzLift DC powered crane (Model LTD-424)
• Post Mast (Model KPHBS-026)
• Pedestal (Model KBP-1012) with Installation Reinforcement Kit (Model KBP-1012H)
• DC quick connect (4 ft / 121.9 cm)
• DC pendant controller (10 ft / 304.8 cm)
• DC wiring harness (25 ft / 762 cm)

The SpitzLift Platform Truck Crane is an ideal solution for professionals seeking a reliable, efficient, and safe method to handle heavy lifting tasks on flatbed and platform trucks. Its robust construction and compact design ensure long-term durability without compromising valuable cargo space.
