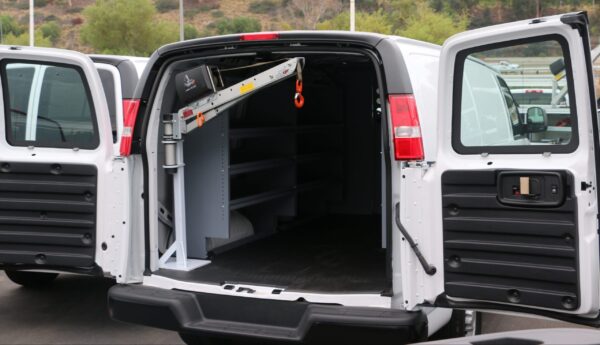

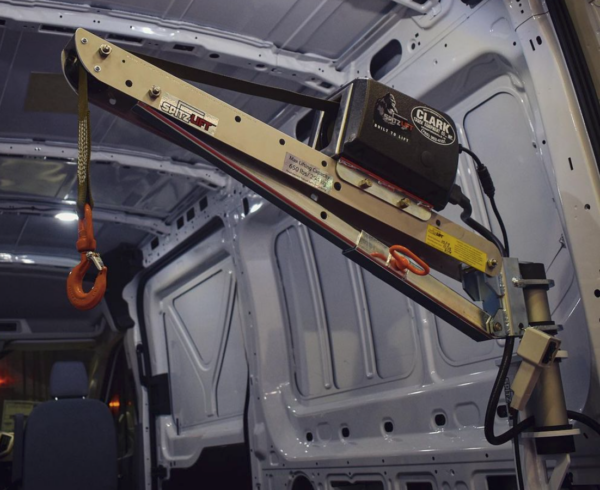

The SpitzLift Van Crane for Chevrolet Express and GMC Savana Rear Door is a lightweight, fold-down crane designed to enhance the functionality of your GM van. Engineered for efficiency and safety, this crane allows for the easy lifting of heavy equipment and materials, reducing the risk of injury and increasing productivity.

Key Features:

• High Lifting Capacity: Capable of lifting up to 650 lbs (294.8 kg), making it suitable for a variety of heavy-duty applications.
• Lightweight Design: Installed weight of approximately 91 lbs (41.3 kg), minimizing impact on vehicle payload.
• Fold-Down Mechanism: Folds neatly when not in use, preserving cargo space and keeping the workspace organized.
• 360° Rotation: Full rotation for versatile positioning during loading and unloading.
• Durable Construction: Aircraft-grade aluminum and steel with a clear anodized and powder-coated finish for durability and corrosion resistance.
• Compliance and Safety: Meets OSHA and ASME standards for safe operation.
• Efficient Operation: 12V DC powered hoist with 22.5 ft/min (6.858 m/min) lifting speed, controlled via 10 ft pendant controller.
• Installation Kit Included: Includes pedestal, reinforcement kit, and hardware for mounting on driver or passenger-side rear door.

Specifications:

• Max Lifting Capacity: 650 lbs (294.8 kg)
• Installed Weight: Approximately 91 lbs (41.3 kg)
• Rotation: 360°
• Lifting Speed: 22.5 ft/min (6.858 m/min)
• Power Requirements: 12V DC @ 70 Amps
• Materials: Aircraft-grade aluminum and steel
• Finish: Clear anodized and powder-coated
• Warranty: 3-year limited warranty

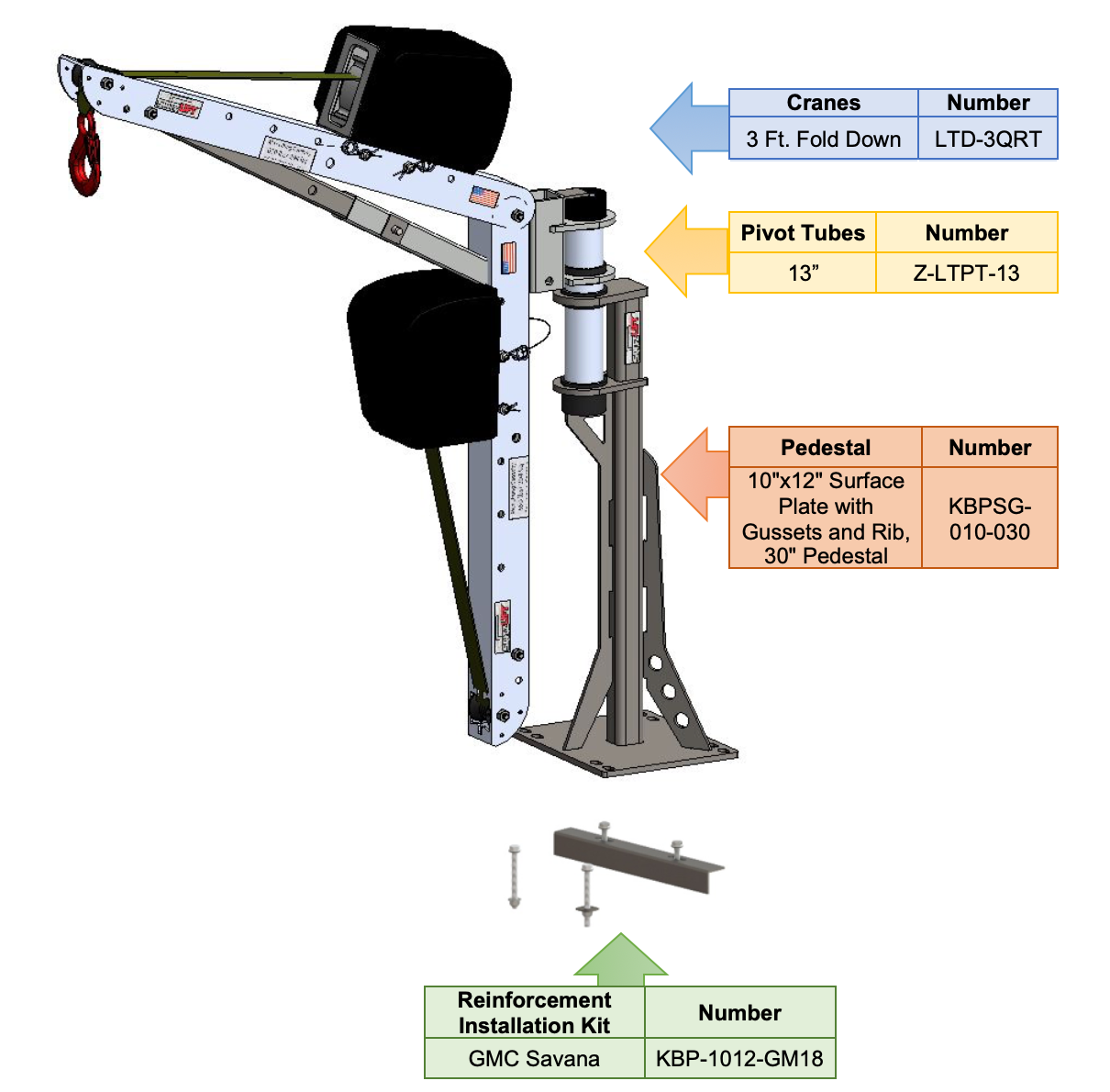

Included Components:

• 3 ft SpitzLift fold-down crane (DC powered)
• Pivot tube
• Pedestal with reinforcement installation kit and hardware
• DC quick connect (4 ft / 121.9 cm)
• DC pendant controller (10 ft / 304.8 cm)
• DC wiring harness (35 ft / 1066.8 cm)

The SpitzLift Van Crane for Chevy/GMC Express/Savana Rear Door is an ideal solution for professionals seeking a reliable, efficient, and safe method to handle heavy lifting tasks within their work vans. Its compact and foldable design ensures it doesn’t interfere with daily operations, while its robust construction guarantees long-term durability.
