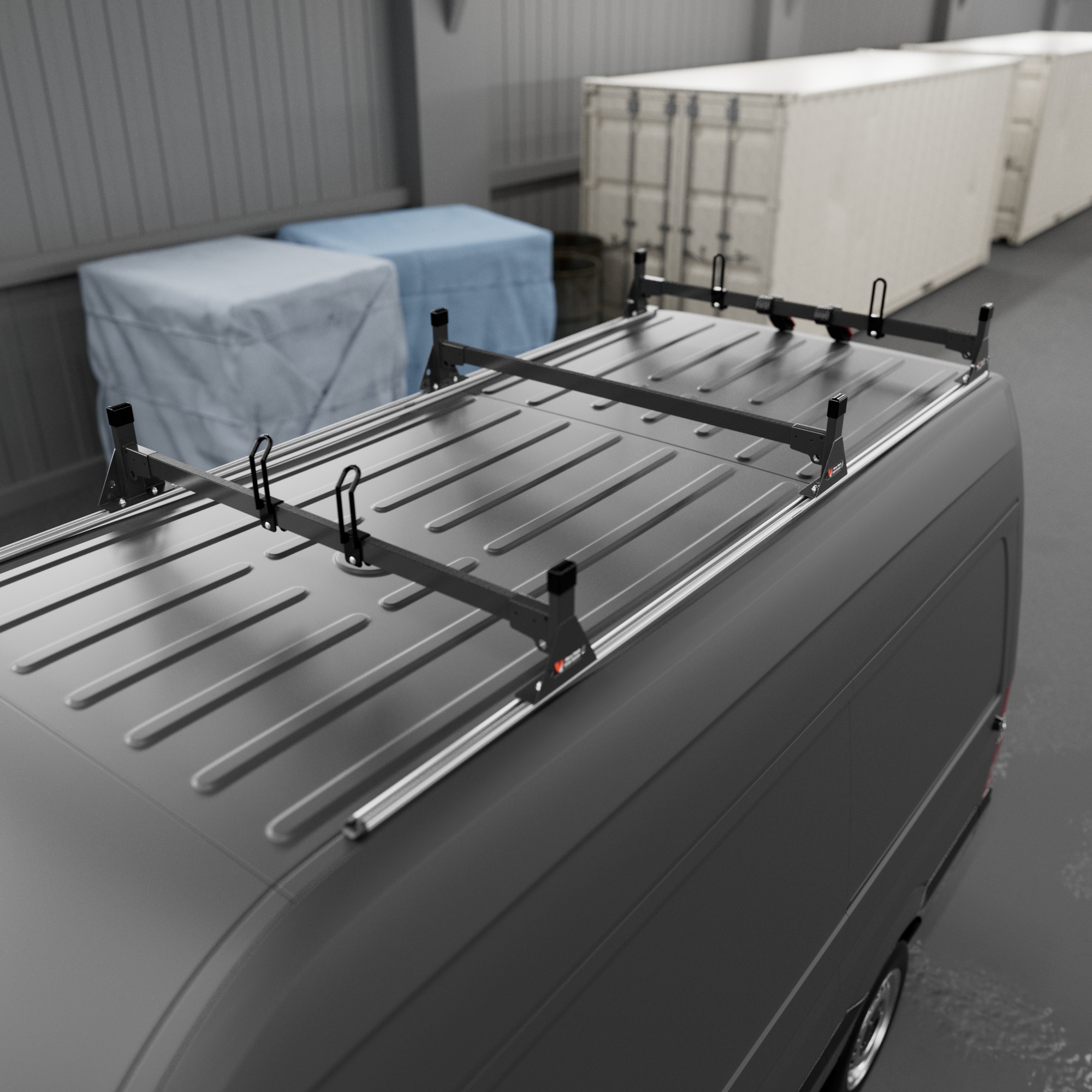

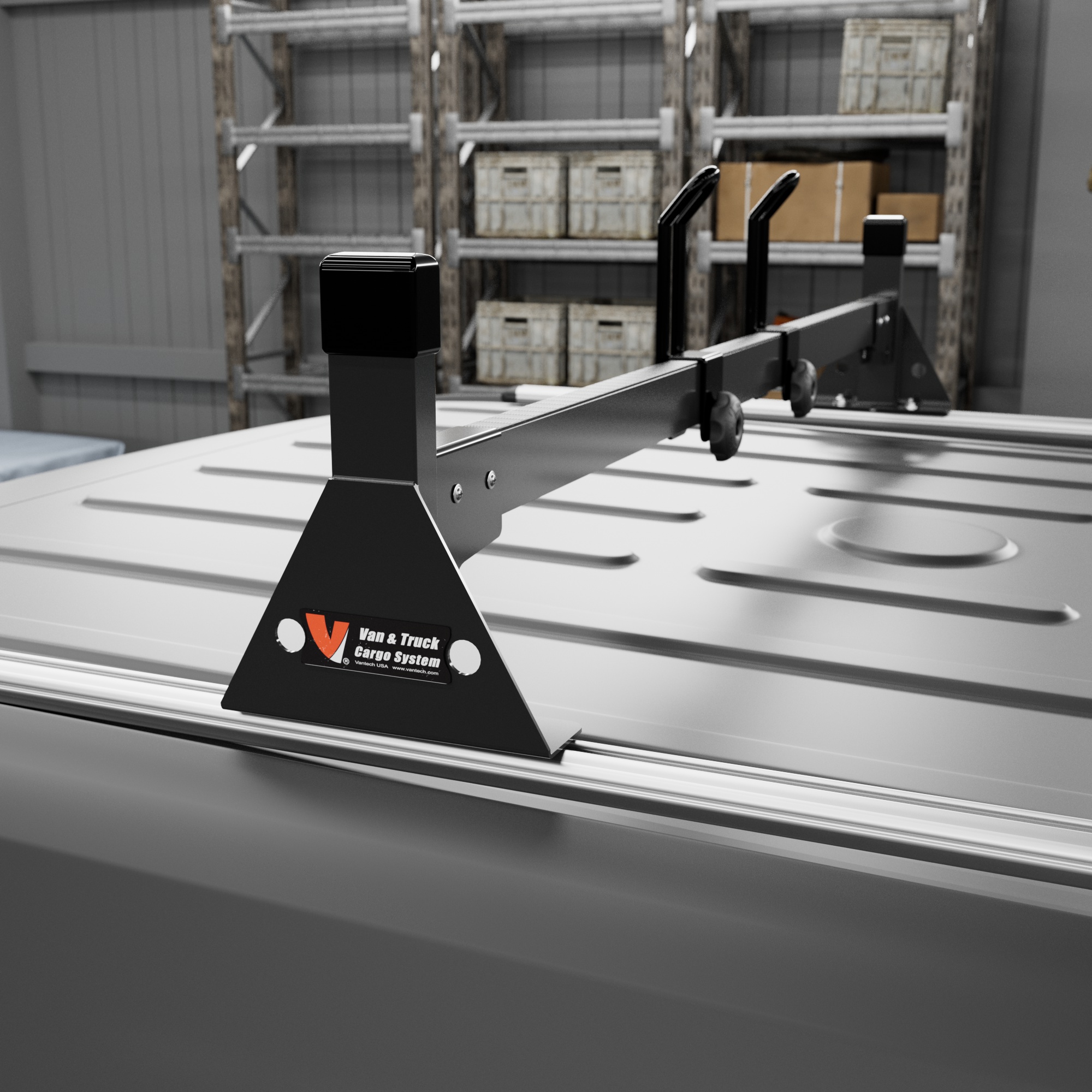

The Vantech H1 system can hold up 250 lbs. per cross bar (evenly distributed). The Crossbars are 2″ X 1″ reinforced extruded aluminum or 14-gauge steel (also available stainless) with built-in channels. The aluminum mounting upright is approx. 1/8″ thick at the base. The mounting uprights are 8in wide at the base and 10.25″ total height. The Base is welded complete onto the upright post for complete seal. There are 4 x 3/4″ eyehook per mounting upright There is absolutely No drilling required. Rubber cap on the upright post prevents wind noise and water leakage. The system Includes 5″ ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5″ ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Hook & loop straps secure ladders within seconds up to 75 lbs.
The Vantech Vantech H1 system uses 2″ X 1″ rectangular bars. The Cross bar is protected by bar guard on cross bars. The Mounting uprights are 8″ X 2″ extra wide base at 10.5″ total height. The Base is welded complete onto upright post for complete seal. There are 4X 3/4″ eyehooks per mounting upright. No drilling required for installation. Rubber cap on the upright post prevents wind noise and water leakage.
Matt W. (verified owner) –
Rack itself is great
