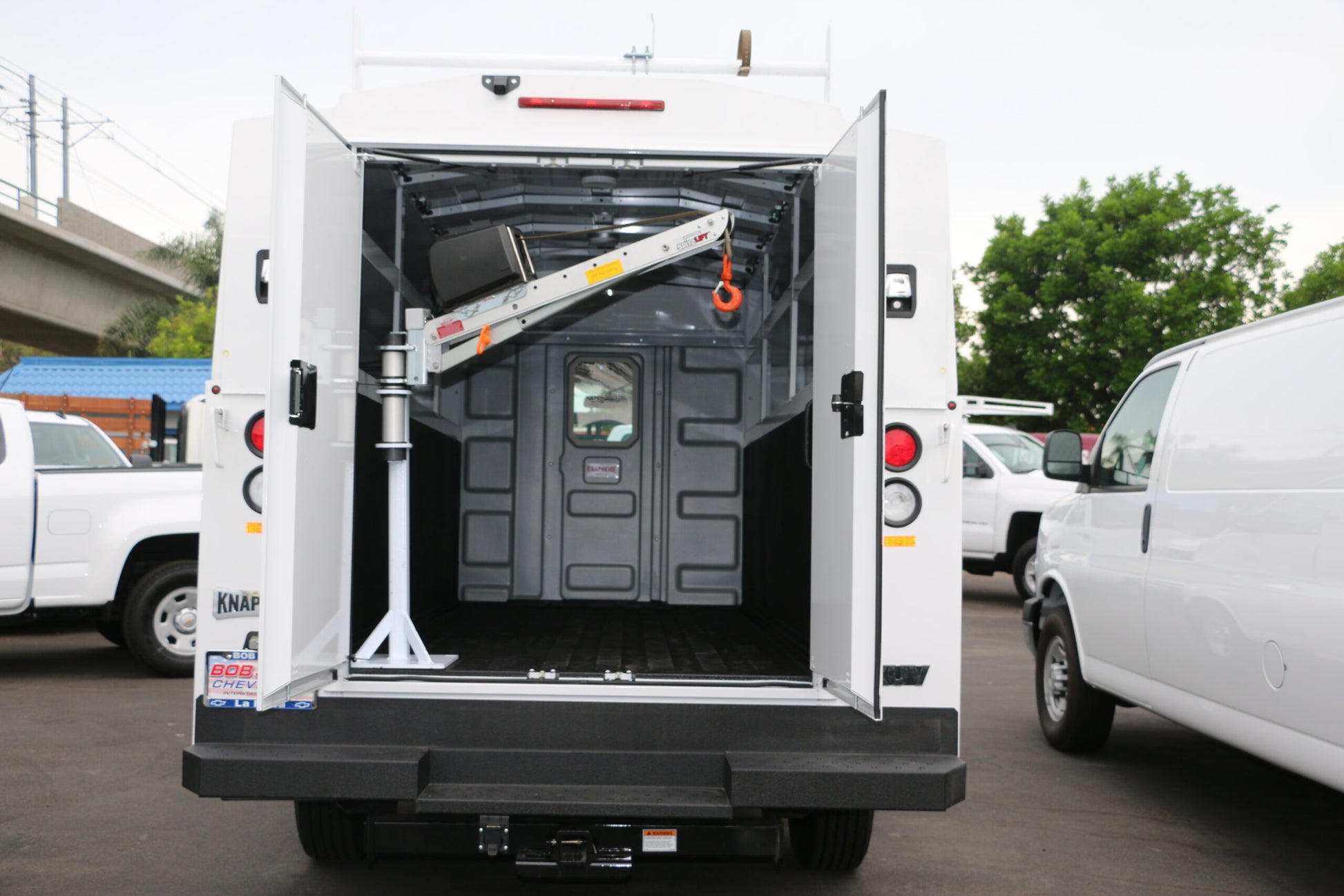

The SpitzLift High Roof Enclosed Service Body Crane is a lightweight, fold-down lifting solution designed for service vehicles with tall roof configurations. Engineered for door openings between 72 to 75 inches, this crane offers a 650 lb lifting capacity while maintaining a compact and efficient design.

Key Features:

• Optimized for High Roof Applications: Suitable for enclosed service bodies with door openings ranging from 72 to 75 inches (182.88 – 190.5 cm).

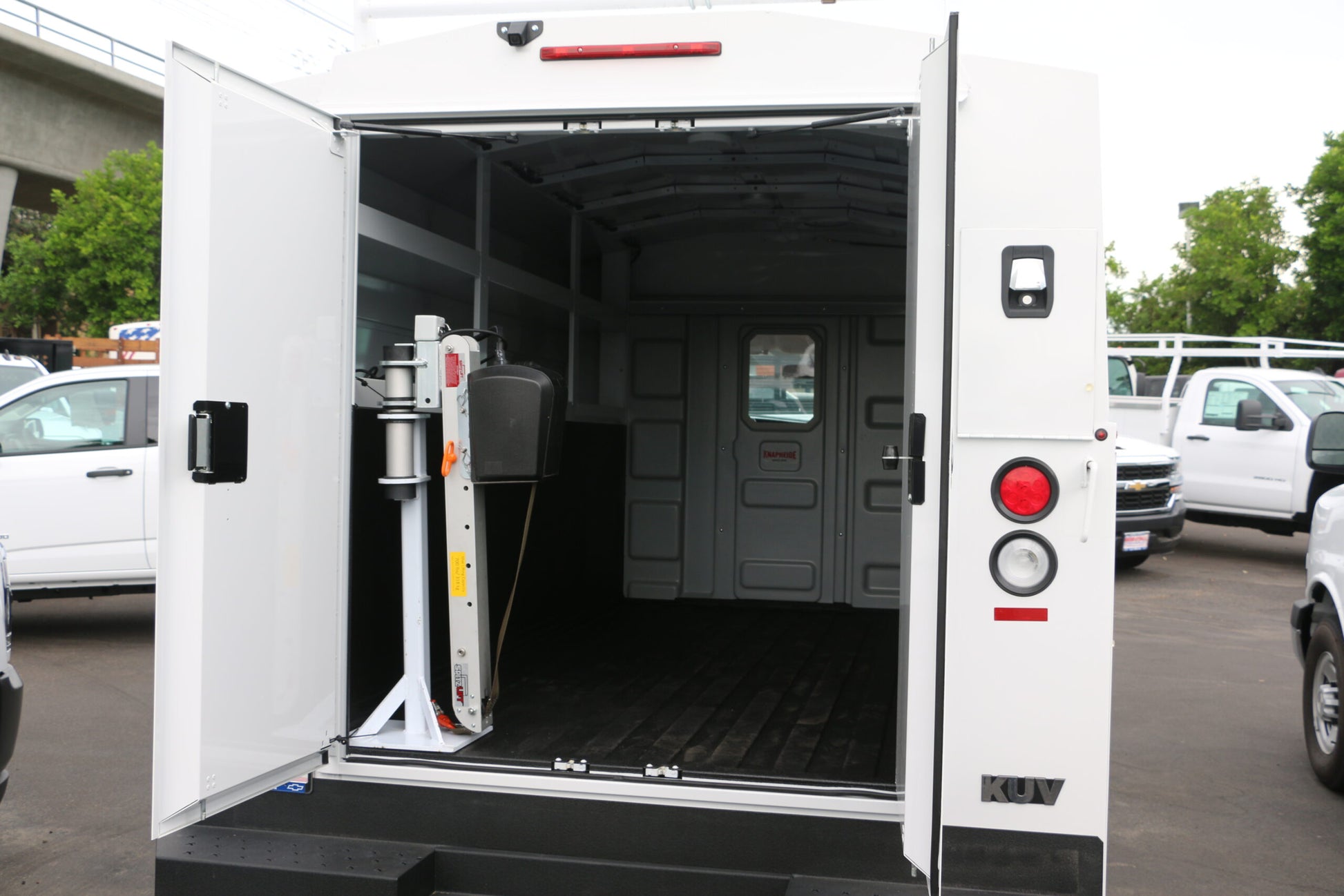

• Fold-Down Design: The crane folds down when not in use, preserving cargo space and workflow efficiency.
• Robust Lifting Capacity: Capable of lifting up to 650 lbs (294.8 kg), ideal for various heavy-duty applications.
• Lightweight Construction: The crane itself weighs 45 lbs (20.4 kg), with a total installed weight of approximately 89 lbs (40.4 kg), minimizing impact on vehicle payload.
• 360° Continuous Rotation: Provides full rotational capability for versatile positioning during loading and unloading operations.
• Durable Materials: Constructed from aircraft-grade aluminum and steel with a clear anodized and powder-coated finish for enhanced durability and corrosion resistance.
• Compliance and Safety: Manufactured in accordance with OSHA and ASME standards, ensuring reliable and safe operation.
• Efficient Operation: Features a 12V DC powered hoist (Model LTD-3QRT) with a lifting speed of 22.5 ft/min (6.858 m/min), controlled via a 10 ft (304.8 cm) pendant controller.

Specifications:

• Max Lifting Capacity: 650 lbs (294.8 kg)
• Crane Weight: 45 lbs (20.4 kg)
• Installed Weight: Approximately 89 lbs (40.4 kg)
• Rotation: 360° Continuous
• Lifting Speed: 22.5 ft/min (6.858 m/min)
• Power Requirements: 12V DC @ 70 Amps
• Materials: Aircraft-grade aluminum and steel
• Finish: Clear anodized and powder-coated
• Warranty: 3-year limited warranty

Included Components:

• 3 ft SpitzLift fold-down DC powered crane (Model LTD-3QRT)
• 13″ Pivot Tube (Model Z-LTPT13)
• Pedestal (Model KBPSG-010-030) with Installation Reinforcement Kit (Model KBP-1012H)
• DC quick connect (4 ft / 121.9 cm)
• DC pendant controller (10 ft / 304.8 cm)
• DC wiring harness (25 ft / 762 cm)

The SpitzLift High Roof Enclosed Service Body Crane is an ideal solution for professionals seeking a reliable, efficient, and safe method to handle heavy lifting tasks within their work vehicles. Its compact and foldable design ensures that it doesn't interfere with daily operations, while its robust construction guarantees long-term durability.
