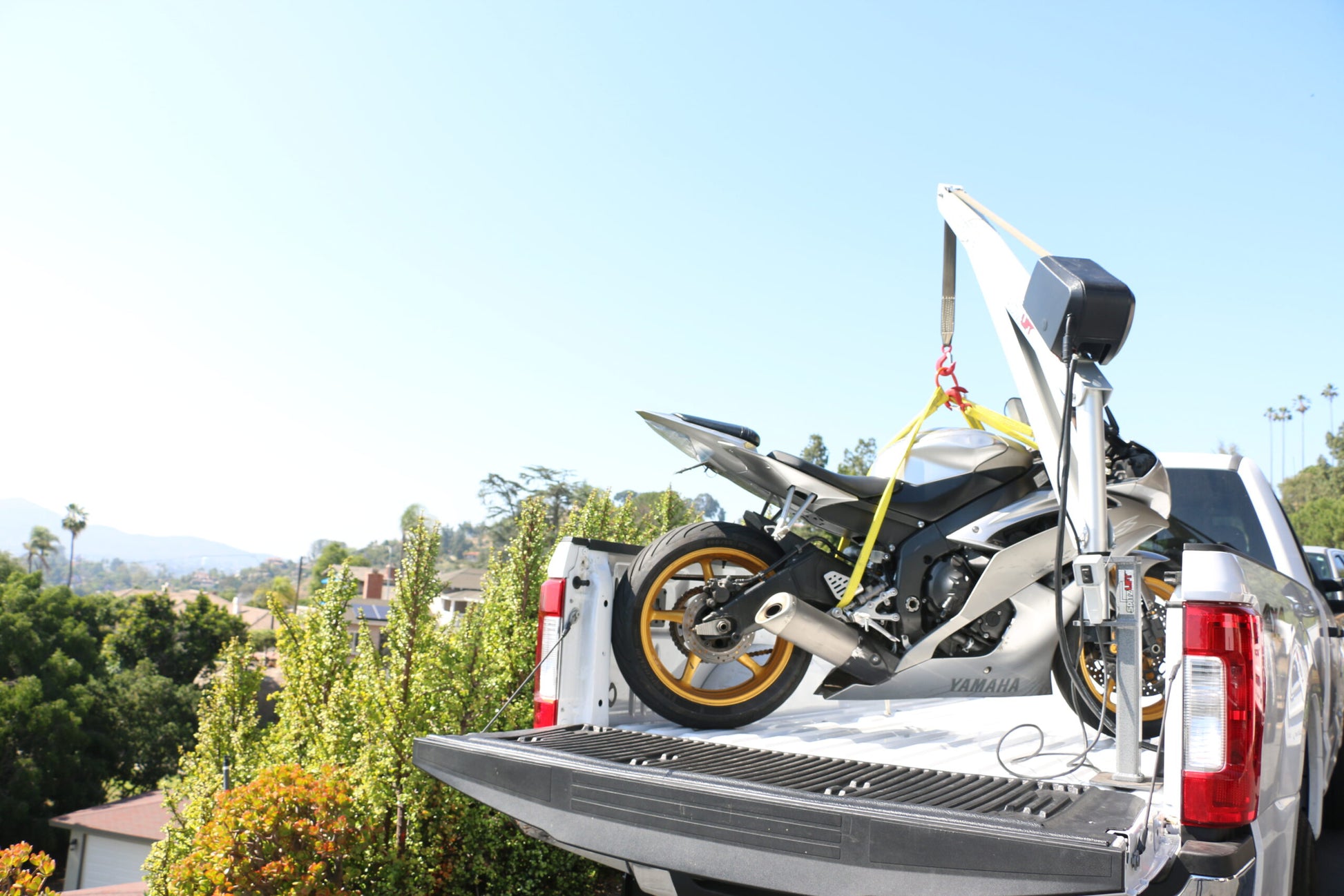

SpitzLift Pickup Truck Crane for Ford F-250/F-350 - Right Side

The SpitzLift In-Bed Floor Pedestal Crane is a lightweight, high-capacity lifting solution designed specifically for Ford F-250 and F-350 pickup trucks (2017 and newer models). Engineered to install on the passenger-side bed floor, this crane offers a robust lifting capacity of 900 lbs (408.2 kg) while maintaining a minimal installed weight of approximately 71 lbs (32.2 kg), ensuring your truck's payload capacity is preserved.

Key Features:

• Vehicle-Specific Design: Tailored for Ford F-250/F-350 models with aluminum truck beds, ensuring a secure and precise fit.
• High Lifting Capacity: Capable of lifting up to 900 lbs (408.2 kg), suitable for various heavy-duty applications.
• Lightweight Construction: The crane system has an installed weight of approximately 71 lbs (32.2 kg), minimizing the impact on your vehicle's payload capacity.
• 360° Rotation: Provides full rotational capability for versatile positioning during loading and unloading operations.
• Durable Construction: Built with aircraft-grade aluminum and steel, finished with a clear anodized and powder-coated surface for corrosion resistance and durability.
• Compliance and Safety: Meets OSHA and ASME standards for reliable and safe operation.
• Efficient Operation: 12V DC powered hoist (Model LTD-424) with a 22.5 ft/min lifting speed, controlled via a 10 ft pendant controller.
• Complete Installation Kit: Includes pedestal (KBP-F250-17), post mast (KPHBS-026), and hardware for mounting on the right rear bed floor.

Specifications:

• Max Lifting Capacity: 900 lbs (408.2 kg)
• Installed Weight: Approximately 71 lbs (32.2 kg)
• Rotation: 360°
• Lifting Speed: 22.5 ft/min (6.858 m/min)
• Power Requirements: 12V DC @ 70 Amps
• Materials: Aircraft-grade aluminum and steel
• Finish: Clear anodized and powder-coated
• Warranty: 3-year limited warranty

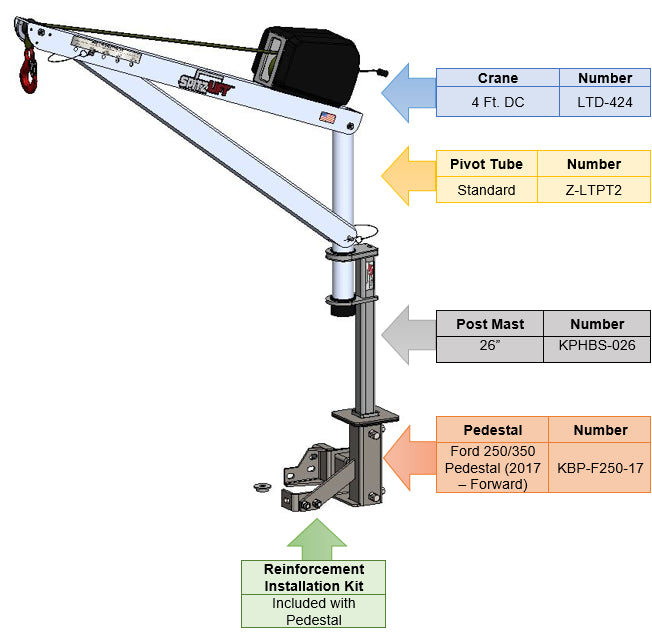

Included Components:

• 4 ft SpitzLift DC powered crane (Model LTD-424)
• Post Mast (KPHBS-026)
• Pedestal with installation reinforcement kit and hardware (KBP-F250-17)
• DC quick connect (4 ft / 121.9 cm)
• DC pendant controller (10 ft / 304.8 cm)
• DC wiring harness (25 ft / 762 cm)

The SpitzLift Crane for Ford F-250/F-350 is an ideal solution for professionals seeking a reliable, efficient, and safe method to handle heavy lifting tasks with their work trucks. Its compact footprint and strong construction make it a long-term asset on any jobsite.
