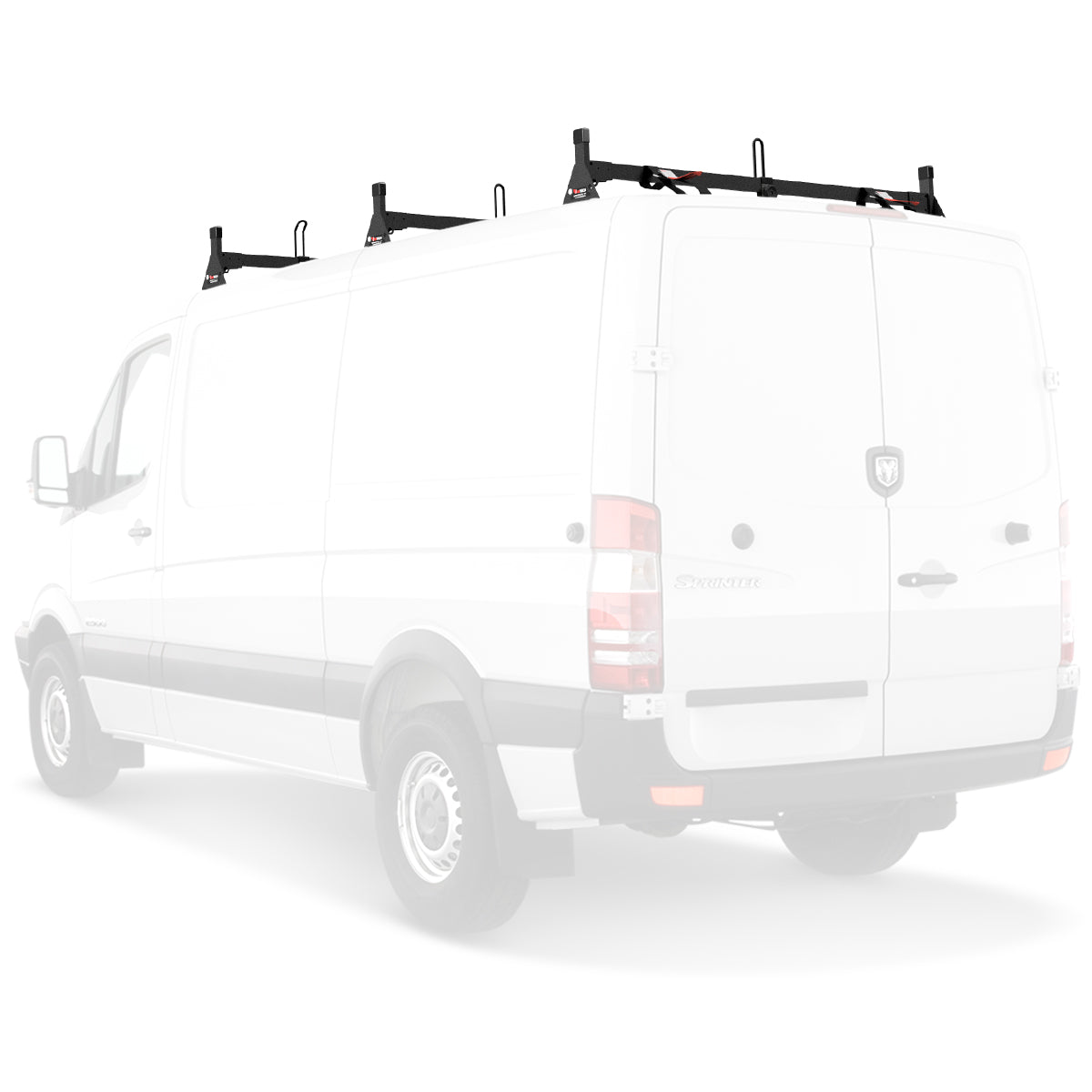

Vantech H1 Ladder Roof Rack For Mercedes-Benz Sprinter - Std Roof

The Vantech H1 system can hold up 250 lbs. per cross bar. The Crossbars is 2″ X 1″ reinforced extruded aluminum with built-in channels. The aluminum mounting upright is approx. 1/8″ thick at the base. The mounting uprights are 8in wide at the base and 10.25″ total height. The Base is welded complete onto the upright post for complete seal. There are 4 x 3/4″ eyehook per mounting upright There is absolutely No drilling required. Rubber cap on the upright post prevents wind noise and water leakage. The system Includes 5″ ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5″ ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Hook & loop straps secure ladders within seconds up to 75 lbs.

The Vantech Vantech H1 Rack System. The Cross bars is 2″ X 1″ rectangular 14 gauge heavy duty bars. Mounting upright are 11 gauge at the base and are galvanized before powder coating. The Mounting uprights are 8″ extra wide base at 16.5″ total height. The Base is welded complete onto upright post for complete seal. There are 4X 3/4″ eyehook per mounting upright. No drilling required to install this system. This system comes with drip rail clamps to install onto the vehicle’s drip rails. The drip rail clamps are 11 gauge steel 2″ X 8″ dipped in rubber top and bottom. Rubber cap on the upright post prevents wind noise and prevent water from entering system.
