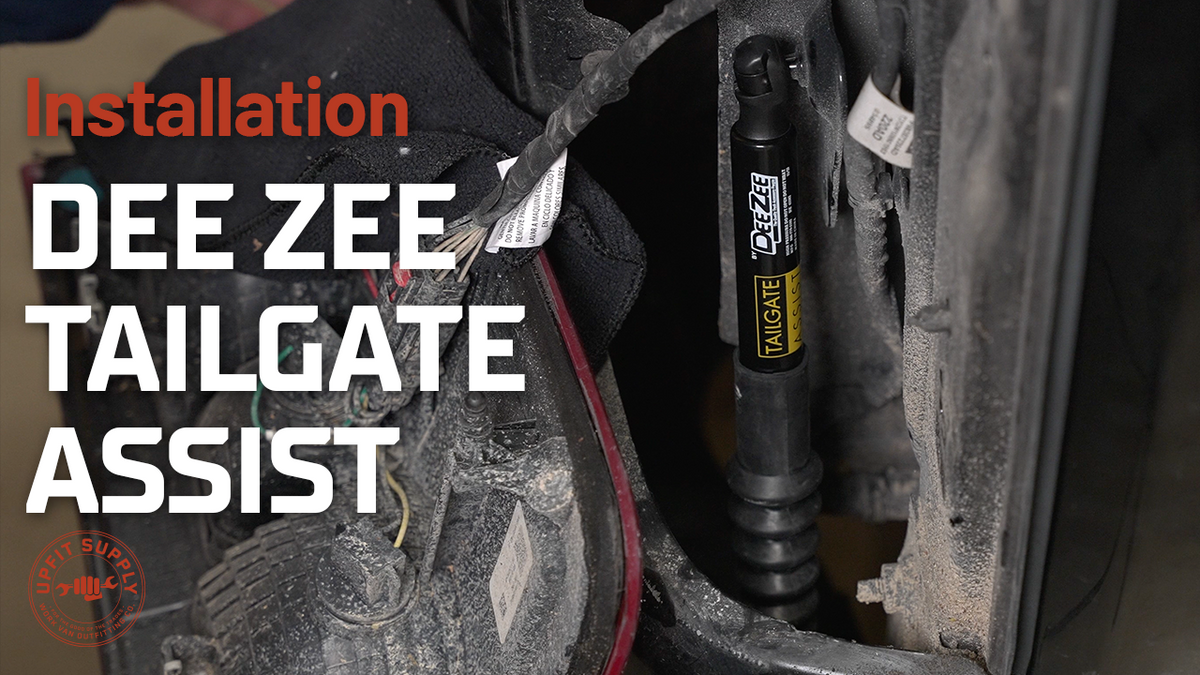

Installing Dee Zee's Tailgate Assist Shock on Our RAM 1500
|
Posted in Installation Videos
What You Need for your Dee Zee Tailgate Assist RAM 1500 Install
Tools: T-25 Torx bit, plastic pry tool for the plastic rivets, and a rag to protect your tail light. The Dee Zee tailgate assist installs on the driver's side only.
Step-by-Step Installation
Step 1: Remove the Plastic Clips and Rivets
Start on the driver's side tailgate area. Remove plastic clips. Pop out the two plastic rivets with a flathead between the center and outer ring.
Step 2: Remove the T-25 Bolts
Remove the two to three bolts securing the tail light assembly.
Step 3: Pull Out the Tail Light
Carefully pull out the tail light and rest it against the truck body. Lay a rag underneath to protect the paint.
Step 4: Locate the Mounting Points
Inside the cavity: a ball stud at the bottom for the lower end of the shock, and a mounting location at the top.
Step 5: Attach the Lower End
Snap the lower end of the Dee Zee tailgate assist onto the ball stud. Compress the shock slightly if needed to seat it.
Step 6: Attach the Upper End
Position the upper end and attach to the upper mounting point.
Step 7: Reinstall the Tail Light
Push the tail light back into position. Start T-25 bolts by hand, then tighten. Reinstall plastic rivets and clips.
Step 8: Test the Tailgate
Open and close. Should lower slowly and smoothly.
Frequently Asked Questions
Is the Dee Zee tailgate assist installed on both sides?
No - driver's side only.
Do I need to drill anything?
No - attaches to factory hardware inside the tail light cavity.
How long does the install take?
About 30 minutes.
What years of RAM 1500 does this fit?
2019–2026 RAM 1500.
Get the Dee Zee tailgate assist for RAM 1500 at Upfit Supply.
