Installing Weather Guard Lo-Side Boxes on Our Ford F-150
|
Posted in Installation Videos
Reliable storage can make all the difference when you’re out in the field. That’s why Weather Guard Lo-Side Boxes for the Ford F-150 are a game-changing upgrade for tradespeople and fleet owners alike. In this guide, we’ll walk you through the entire process—from positioning the box to installing plus-nuts—so you can mount a secure, low-profile tool compartment in under an hour. Along the way, we’ll highlight standout features like rust-proof aluminum construction, extra-wide tie-down rings, and flush-mount push-button locks designed for quick access and long-term durability.
Why Installing Weather Guard Lo-Side Boxes on Our Ford F-150 Matters
First, gear theft and exposure slow jobs. Moreover, tossing loose tools in the bed creates hazards. Therefore, Installing Weather Guard Lo-Side Boxes on Our Ford F-150 delivers:
- Weatherproof Seal: Keeps water, dust, and debris out.
- Low-Profile Design: Maintains bed clearance while adding storage.
- Heavy-Duty Locks: Flush buttons clearly show locked status.
-
Integrated Tie-Downs: Four braided rings secure cargo effortlessly.
Consequently, your tools stay safe, organized, and ready.
Tools for Installing Weather Guard Lo-Side Boxes on Our Ford F-150
Before you start Installing Weather Guard Lo-Side Boxes on Our Ford F-150, assemble:
- Socket wrench (7/16″, 1/2″) for plus-nuts
- Drill & drill stops (3/16″ & 1/2″ bits) to prep holes
- Square or straightedge to align box squarely
- Floor jack or blocks to level box on bed rail
-
Marker to transfer hole locations
Meanwhile, clear out your bed and remove any existing mats. This prep speeds installation.
Positioning & Clearance
First, test-fit your low-side box on the rail. Then ensure:
- Gap to Crossover Box: Leave ⅛″ between boxes.
- Bed-Rail Flushness: Box bottom must fully seat on rail.
-
Tailgate Access: Verify lid clearance when open.
Meanwhile, use a floor jack to hold box steady. Next, align rear corner and check parallelism.
Marking & Drilling
After positioning, mark bracket holes on the bed and box:
- Rear Bracket: Hold L-shaped bracket inboard of wheel well.
- Front Bracket: Align flush with bed-rail edge.
-
Transfer Marks: Use marker to dot hole centers on box and floor.
Next, remove the box and drill:
- Pilot Holes: 3/16″ bit for plus-nut sleeves.
- Enlarge: 1/2″ bit to accept plus-nut body.
-
Clean Edges: Deburr holes for a tight seal.
Consequently, your plus-nuts seat firmly without wobble.
Step-by-Step: Installing Weather Guard Lo-Side Boxes on Our Ford F-150
-
Set Plus-Nuts:
- Thread plus-nut onto special black bolt.
- Insert tool assembly into drilled hole.
- Hold tool and torque bolt until plus-nut flanges expand.
-
Attach Box Brackets:
- Loosely secure rear and front brackets to box side.
- Use 1/2″ washer and lock washer under head.
-
Reposition Box:
- Lift box onto bed rail.
- Align brackets over plus-nuts.
-
Bolt Box to Bed:
- Thread through side brackets into plus-nuts.
- Hand-tighten then torque to spec.
-
Secure Bed-Rail Clamps:
- Slide J-bolts under bed rail flange.
- Thread into bottom holes of box brackets.
- Tighten until box sits flush.
Furthermore, these steps work whether you’ve installed a crossover box or not.
Final Steps After Installing Weather Guard Lo-Side Boxes on Our Ford F-150
Once hardware is snug:
- Inspect Lock Function: Push-button should retract flush when locked.
- Test Lid Operation: Open and close three times to seat seals.
- Check Tie-Down Rings: Tug each ring to confirm tight mounting.
-
Verify Alignment: Ensure box corners line up with bed rail.
Finally, load your tools with confidence. The low-profile footprint maximizes bed space without sacrificing capacity.
Maintenance Tips for Lo-Side Reliability
To prolong box life:
- Quarterly Grease: Lubricate hinge pivots and latch cams.
- Monthly Seal Check: Wipe gaskets and inspect for cracks
- Annual Bolt Audit: Retorque plus-nuts and bed-rail clamps.
-
Surface Clean: Use mild soap—avoid harsh solvents on the matte finish.
Moreover, these quick tasks ensure your storage stays watertight year-round.
Conclusion: Secure Storage Simplified
At Upfit Supply, we understand that Installing Weather Guard Lo-Side Boxes on Our Ford F-150 transforms an empty bed into a secure tool vault. With anodized aluminum durability, easy-use locks, and robust tie-downs, this low-profile box checks every performance box.
Ready to lock in secure storage? Shop now:
Full install tutorial: YouTube Video
With Upfit Supply, your truck works as hard as you do—no exceptions.
Products Used On This Upfit
-

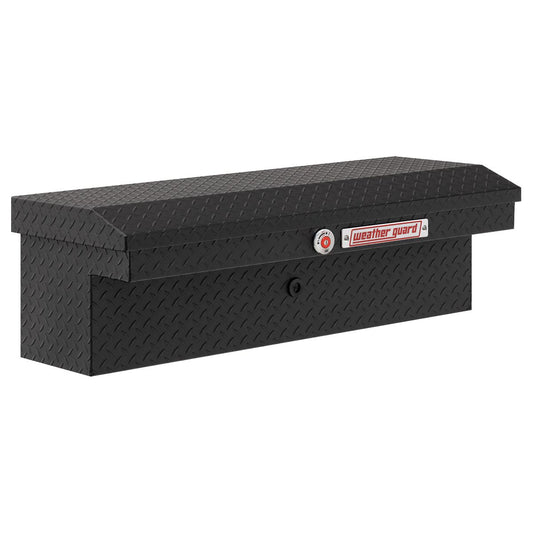

Weather Guard Lo-Side Truck Box - 41-in L [4th Gen]
