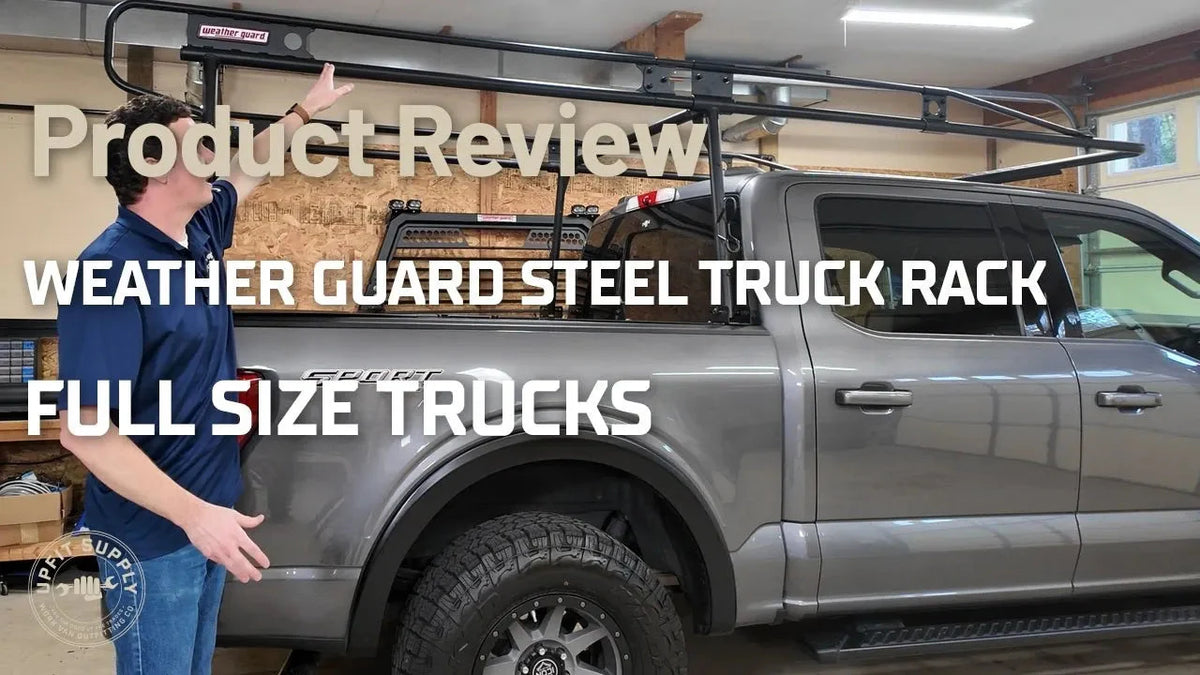

Weather Guard Universal Steel Truck Rack Review: 1,000 lb Capacity, No Drill Install

What This Rack Is Built For

This Weather Guard universal steel truck rack is rated for a full 1,000 lb capacity and is built to work across all half-ton, three-quarter ton, and one-ton full-size trucks, as long as you are able to physically get underneath your bed rail to attach the mounting hardware. At roughly 160 lbs for the rack itself, this is a heavy piece of equipment and genuinely qualifies as a two-man install for the lifting portion, and because of its weight and overall dimensions, it ships to you on a pallet rather than as a standard parcel. Once installed, it is rated to handle ladders, pipe, lumber, and other job site materials up to that full 1,000 lb capacity, evenly distributed across the rack.

No-Drill Installation and Adjustable Fit

One of the best features of this rack is that the entire installation happens without drilling into your truck bed. A handful of clamps positioned at each mounting foot are all that is needed to attach the rack securely to your bed rail, which makes for a clean, fully reversible, non-destructive installation that will not affect your truck's resale value or leave permanent holes if you ever decide to remove it. The front legs are also adjustable, sliding forward and backward along the side rails to accommodate whether you have a crew cab, extended cab, or regular cab configuration, and whether your bed measures 5.5 feet, 6.5 feet, or a full 8 feet long.

On a 5.5-foot bed paired with a crew cab, the front crossbar of the rack lines up almost exactly with the front of the windshield once properly adjusted. That front crossbar also includes a welded-on wind foil that helps reduce road noise and turbulence at highway speed, a detail that makes a real difference on longer drives. Each leg of the rack has integrated tie-down points built directly into the structure, useful for strapping down cargo either on top of the rack itself or material sitting in the bed below it, and the rear crossmember includes a built-in grab handle for getting in and out of the bed safely. The rear crossbar also features a removable pin system: pull the pins, rotate the crossbar up and out of the way, and you can load a pallet or anything unusually tall that would not otherwise fit underneath the rack in its normal closed position.

Accessories and Available Versions

This particular rack is constructed from steel with a powder-coated black finish and comes backed by a lifetime warranty from Weather Guard, reflecting the brand's confidence in long-term durability. If you have a midsize truck like a Colorado, Canyon, or Ranger, Weather Guard makes a properly sized version of this same rack built specifically for those smaller trucks. If you have a heavy-duty three-quarter ton or one-ton truck and need more capacity than the standard 1,000 lbs, there is also a beefed-up version of the rack rated to handle up to 1,700 lbs for heavier job site demands.

Weather Guard makes several accessories designed specifically to pair with this rack. A cab guard attaches to the front legs and functions essentially as a headache rack, protecting your rear glass while you load cargo and material into the bed without worrying about anything shifting forward into the cab window. A ratchet strap accessory integrates directly into the side rails for tying down cargo more securely than improvised strapping, and an additional crossbar can be added to the rack if you regularly carry material at a specific height and want extra support or protection over the cab, or additional structure toward the rear of the rack.

Installation took about an hour and a half total in this particular case, with most of the assembly work done solo off the truck before a second person was needed only to help physically lift the assembled rack into place on the bed. With three people working together instead of two, that lifting portion goes noticeably faster and with less physical strain on any one person.

• 1,000 lb capacity, universal fit for half-ton, three-quarter, and one-ton trucks
• No-drill clamp installation at each mounting foot
• Adjustable front legs for crew, extended, or regular cab and any bed length
• Welded-on wind foil on the front crossbar to reduce road noise
• Removable rear crossbar pins for loading tall or oversized material
• Steel construction with powder-coated black finish and lifetime warranty
• Midsize version available; heavy-duty 1,700 lb version available for 3/4 and 1-ton trucks

Frequently Asked Questions

Does this rack work on every full-size truck on the market?

It is designed to work universally across half-ton, three-quarter, and one-ton full-size trucks as long as you can access the underside of your bed rail for the clamp attachment. Always verify clearance on your specific make and model before ordering.

How long does installation typically take?

Plan for around 1.5 hours for a first-time install. Most of the assembly can be completed solo off the truck, with a second person needed primarily for the final lift onto the bed.

Can I add accessories to this rack after the initial installation?

Yes. The cab guard, ratchet strap system, and additional crossbar are all designed to be added on after the core rack is installed, so you can start with the base rack and expand your setup over time as your needs change.

What's the difference between this rack and the heavy-duty 1,700 lb version?

The heavy-duty version uses a beefed-up construction to handle additional weight and is intended for three-quarter ton and one-ton trucks that may need to carry heavier material than the standard 1,000 lb rating allows.

Does the rack come pre-assembled or do I need to build it from scratch?

The rack ships unassembled and requires building from individual components, which is part of why the total install time runs close to 1.5 hours including both assembly and mounting.
