Legend Liner Package - Ford Transit Cargo Van
Legend Liner Package - Ford Transit Cargo Van
Ships LTL Freight
Configure Your Package
Fill out the fields below to configure your package. Individual items in the package may also be customized separately below this form.

Legend DuraTherm Insulated Wall Liner Kit For Ford Transit Cargo Vans open_in_new

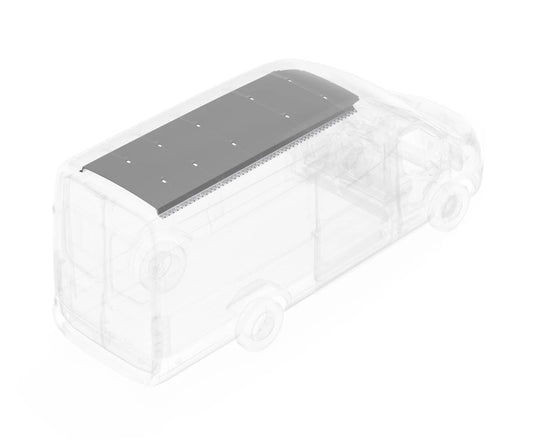

Legend DuraTherm Ceiling Liner Kit for Ford Transit Cargo Vans open_in_new

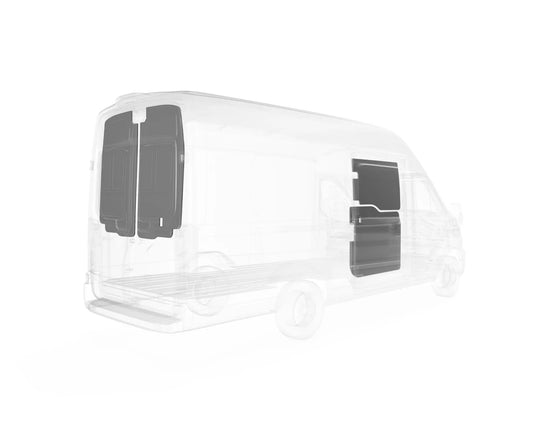

DuraTherm Insulated Door Liner Kit for Ford Transit Cargo Vans open_in_new

Aluminum Ceiling Sills for Ford Transit open_in_new

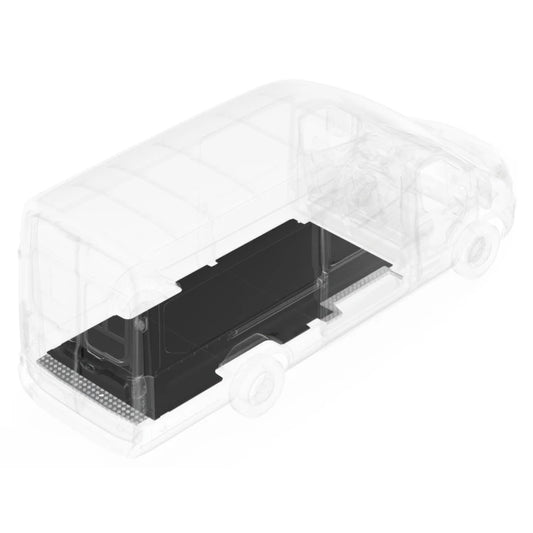

Legend StabiliGrip Rigid Floor for Ford Transit Cargo Vans (2014–2024) open_in_new

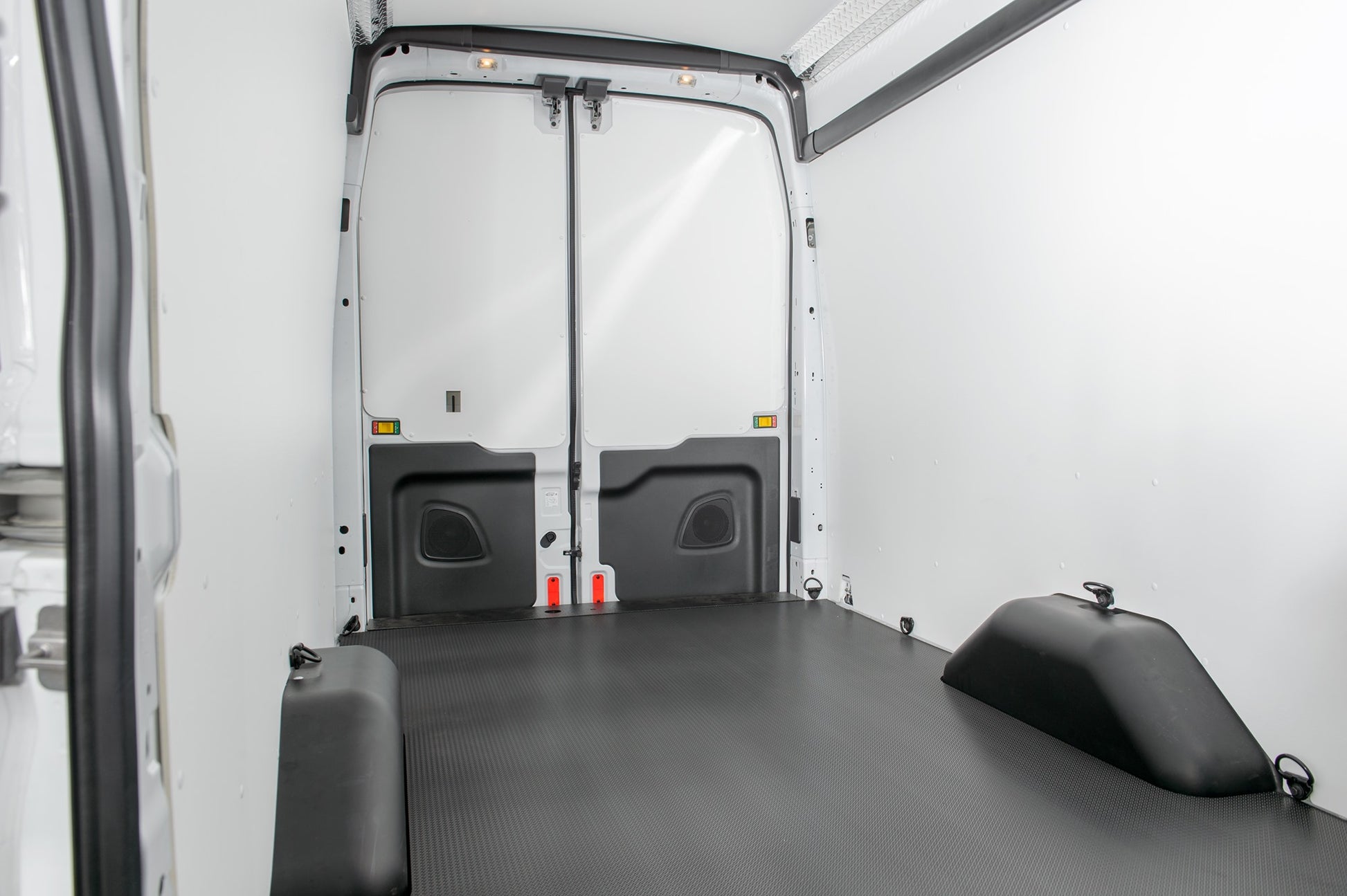

AutoMat-Bar Rubber Mat for Ford Transit Cargo Vans open_in_new

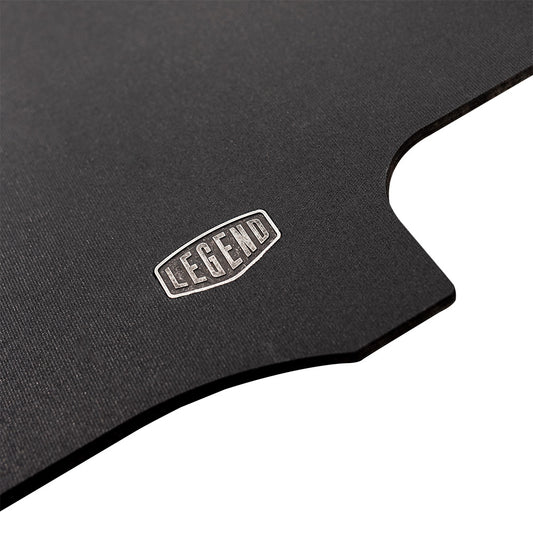

Evolve Lightweight Floor for Ford Transit & E-Transit Cargo Vans open_in_new

Wheel Well Cover Set for Ford Transit Cargo Vans open_in_new

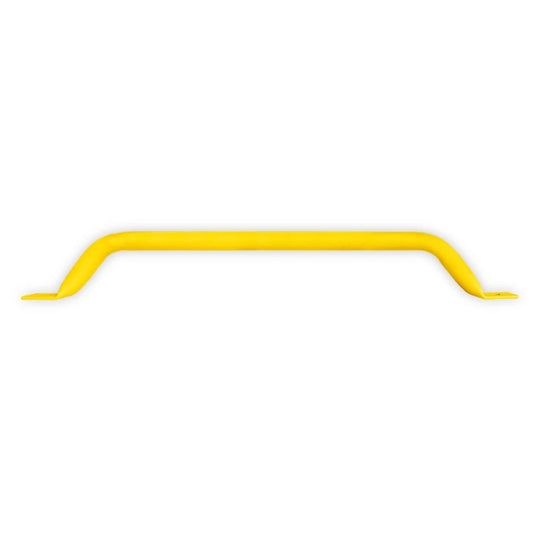

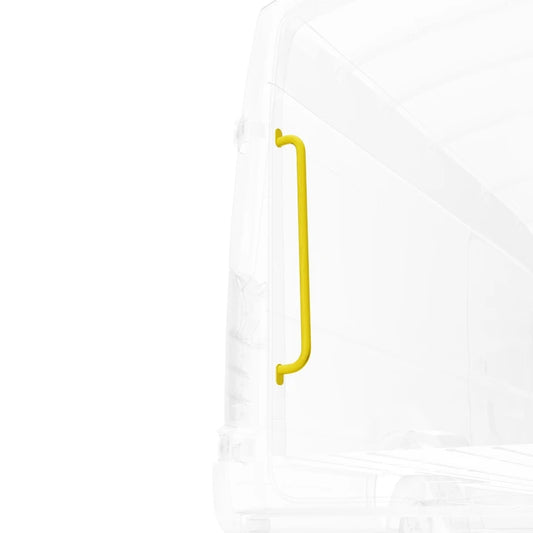

SecureGrip Rear Grab Handles for Ford Transit (Pair) open_in_new

Motion Sensor Ceiling Lights open_in_new

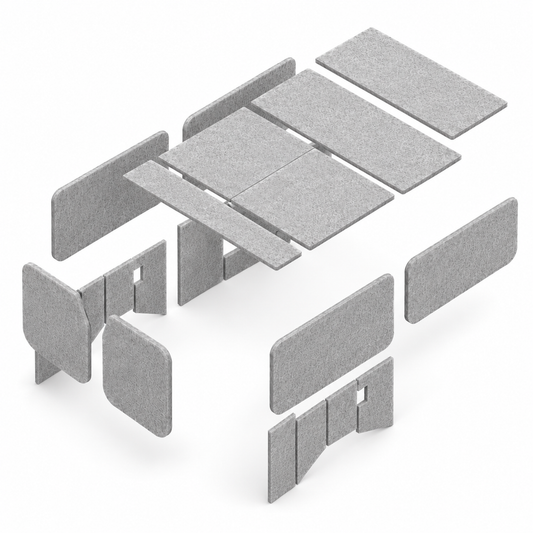

Ford Transit Cargo Van Insulation Kit open_in_new
This product has a minimum purchase quantity of .
Couldn't load pickup availability
Fits models with passenger side sliding door only. For models with dual sliding doors, please contact customer service.
Description
Description

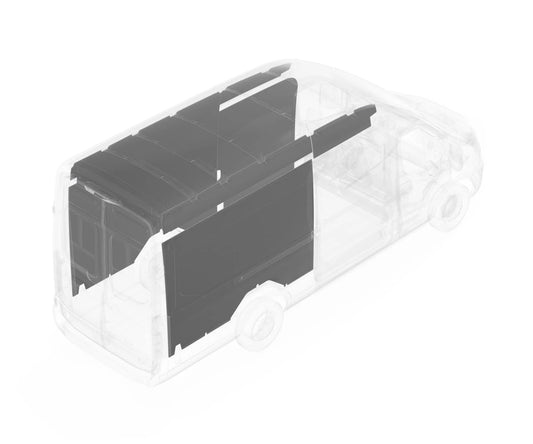

DuraTherm Insulated Liners help protect your cargo van while suppressing noise and controlling temperature. The liners are made of dual polypropylene outer skins laminated to a central fluted plastic core. The outer skin in backed with a foam and foil insulation resulting a 0.4-inch thick liner with an R value of 4-6 (with insulation).
The door liners protect the sheet metal or the glass in the window cavities from moving objects inside the van that could cause potential damage, such as dents or broken windows.

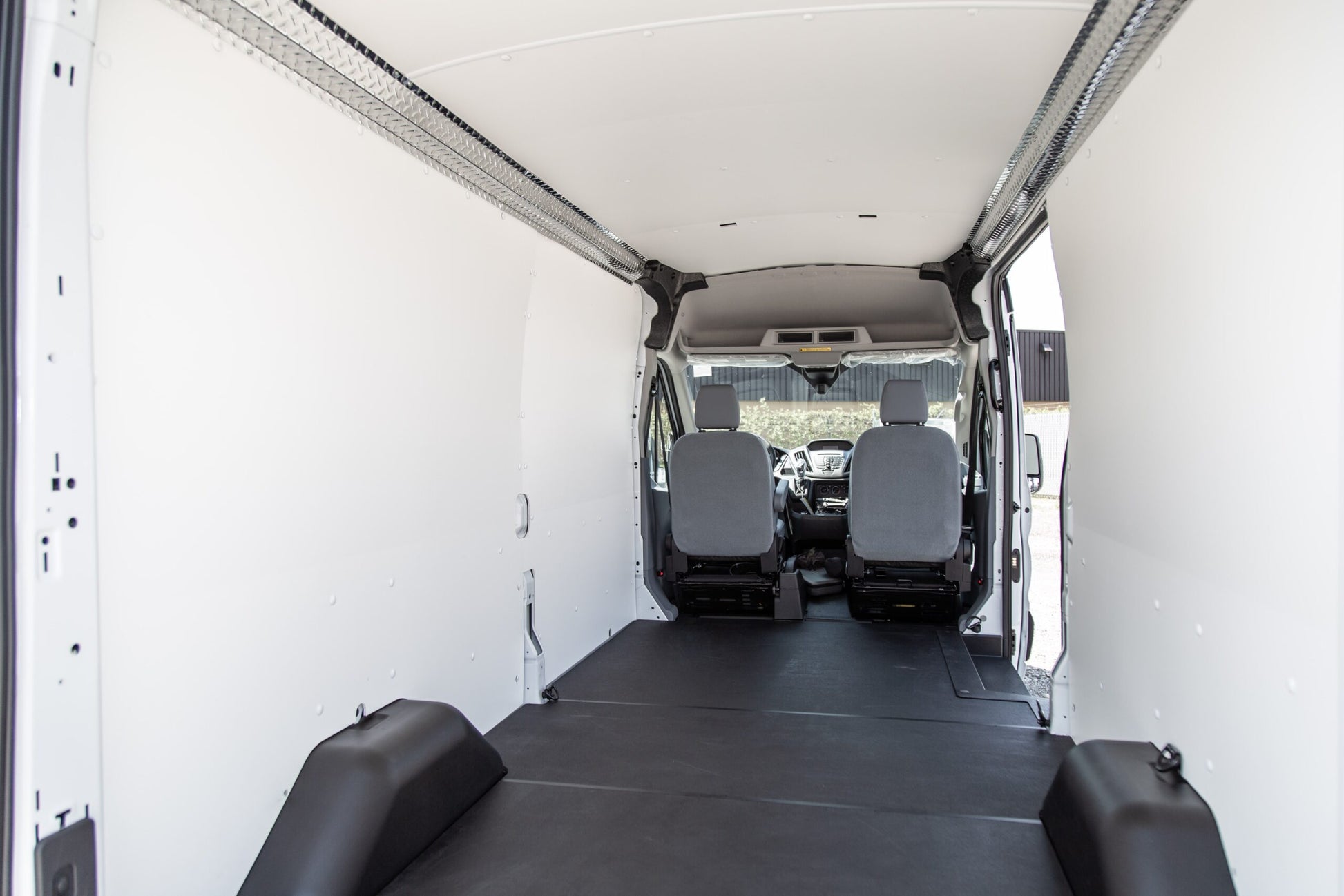

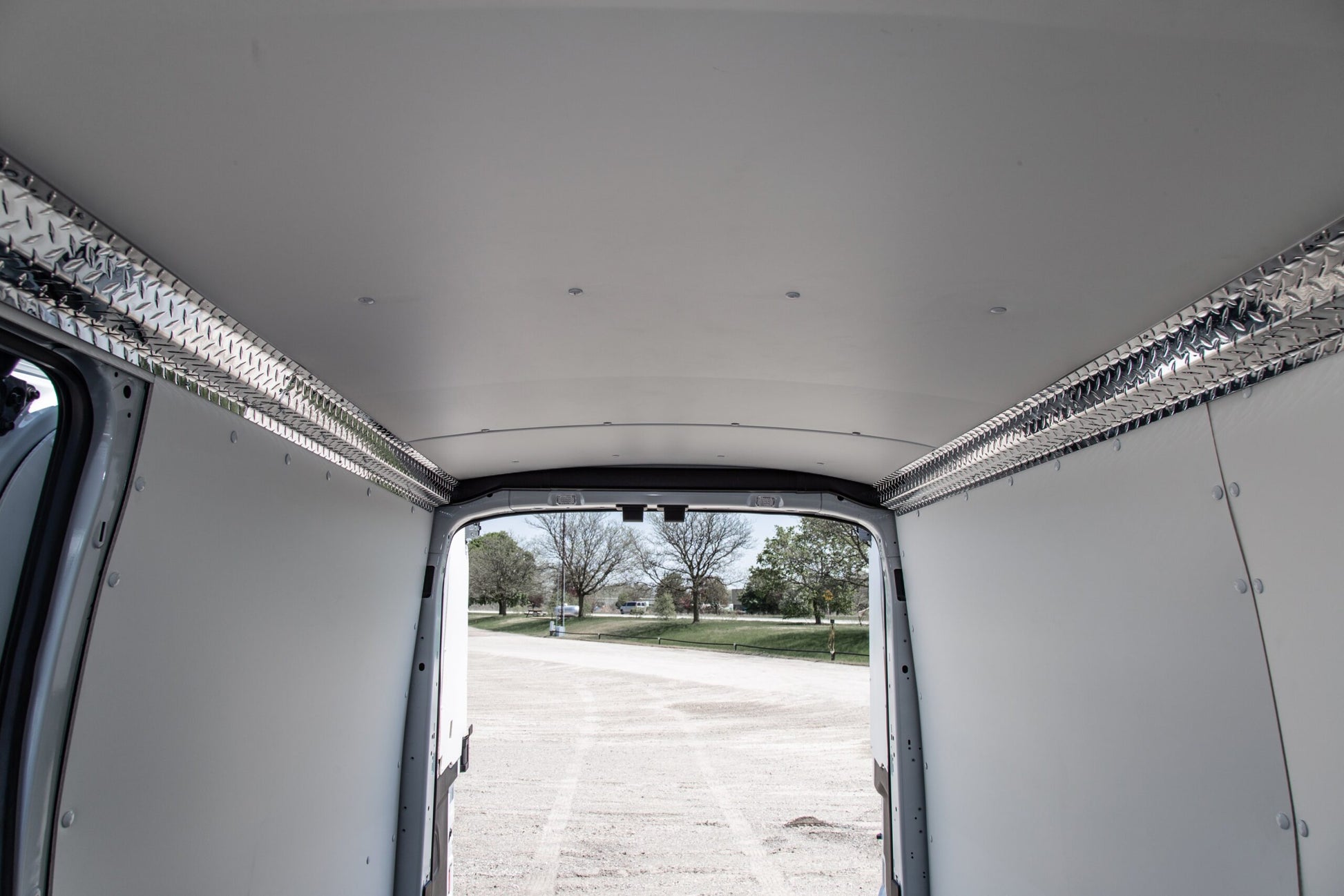

The ceiling liners protect your ceiling and have many other benefits. A ceiling liner helps with sound deadening and plays a critical role in temperature control. The ceiling liner also provides a clean finished look that will make any mobile workplace more professional. An optional set of aluminum side sills create a beautiful transition from wall to ceiling.
The noise-deadening material and temperature control make for a quiet and comfortable environment. The lightweight, precision-cut and pre-drilled material, with included mounting hardware, provides quick and easy mounting of the liners.
Why Use Cargo Van Liners?
Prevent Damage
In the daily use of your cargo van, there are many objects that can cause damage inside (and outside) the vehicle. Loose cargo and using your van as a mobile work site can result in accidental damage to the interior walls/doors. A recent customer told Legend that he put two nasty dents into the side of his vehicle within the first week of owning his brand new van. These dents cause the paint to crack and flake off on the exterior of the vehicle and can eventually lead to rusting.
Reduce Road Noise
Cargo vans’ thin outer steel panels are getting thinner by the year, and do very little in the way of reducing road noise. With the noise of the tires on the road, the creaking of the traveling vehicle, and sound of rocks or other debris flying up and hitting the vehicle, it can be quite irritating for the driver.
Control Temperatures
The temperature in a cargo van is often hard to keep stable. With only bare metal panels, it’s nearly impossible to hold the temperature steady. This means it’s too cold in the winter and too hot in the summer. This can lead to problems with your cargo such as freezing or melting.

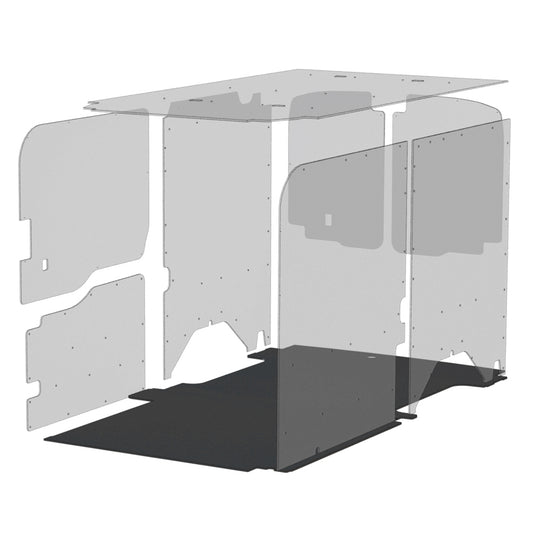

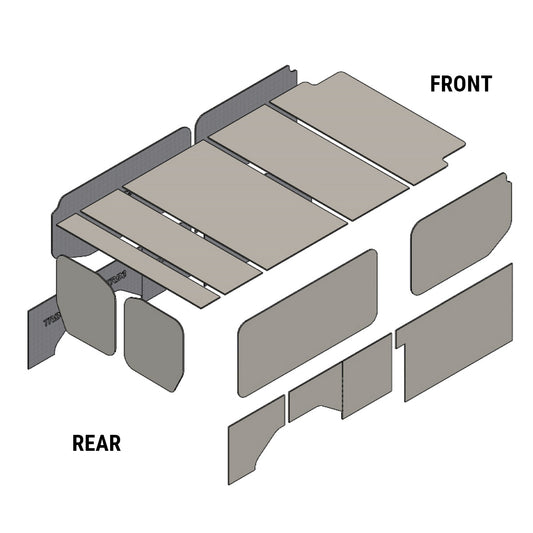

Everything Included In This Package
- DuraTherm Wall Liners
- DuraTherm Door Liners
- DuraTherm Ceiling Liners (with optional aluminum ceiling sills)
- All Installation Hardware
Optionally Add To This Package

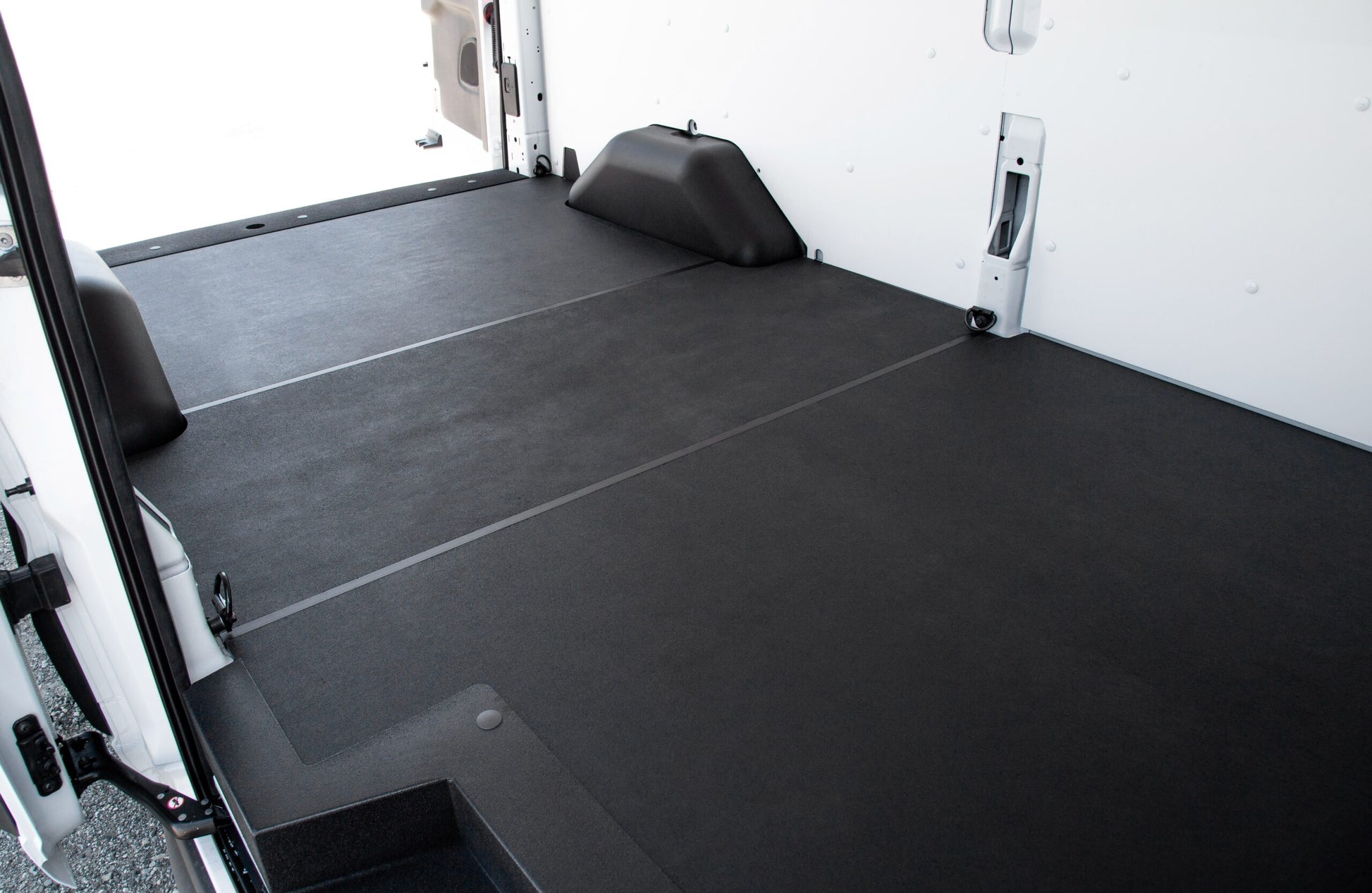

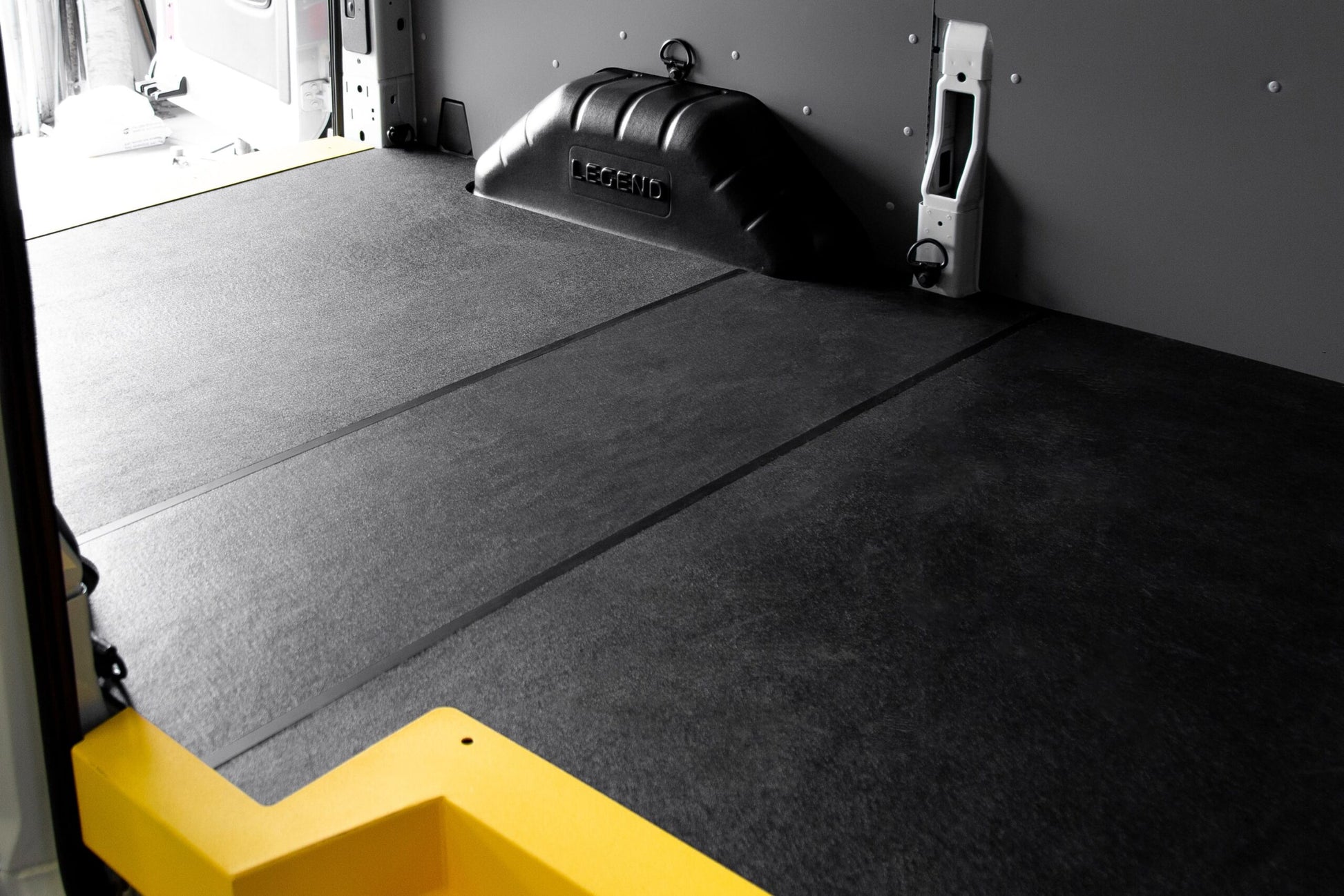

- StabiliGrip Rigid Floor with aluminum door/threshold sills for each door

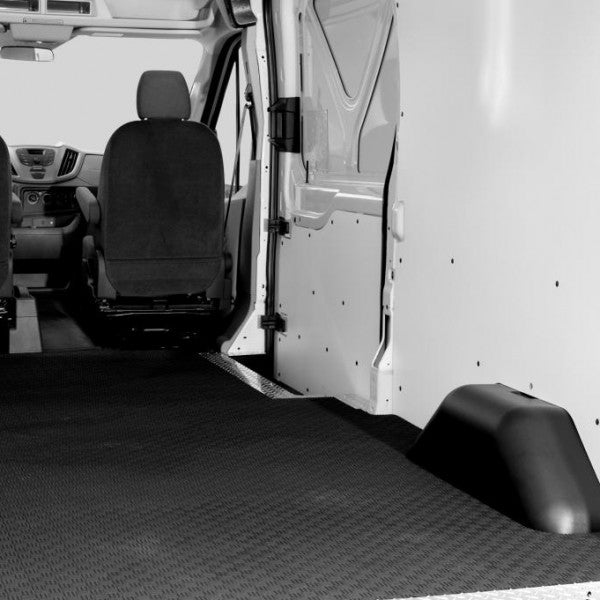

- Automat Rubber Mat with aluminum door/threshold sills for each door
- Wheel Well Covers to protects the bare metal wheel wells from scratches/rust and dents
Installation Notes:
- Wall liners attach to vehicle using plastic push-in clips.
- Ceiling liner attaches to vehicle using plastic push-in clips. Requires trimming (pre-scored on back of liner) to accommodate foam blocks. Requires trimming (pre-scored on back of liner) to accommodate factory lights. Ceiling liner is 2 panels joined together with a color-matching joiner strip (except for 130" wheelbase, which is just 1 panel).
- Door liners attach to vehicle using both plastic push-in clips and self-threading screws.
Compare Options
Compare Options
MPN | Title | Price | Availability |
---|---|---|---|
LFS-BUN-FT-CAR | Default Title | $2,097.36 |
|
Product Specifications
Product Specifications
Vehicle Fitment
Vehicle Fitment
Install Details
Install Details
Legend Liner Package - Ford Transit Cargo Van
I recently installed the ceiling and side diamond plate sills. Looks good but the back is not covered, leaving the wire harness exposed. Do you have a product or suggestion to cover it?
I ordered the complete up fit package with the stabiligrip floor, steel full lower step and rear door sills, duratherm ceiling and wall liners, etc and I received one pallet and I go to install everything and I am missing all kinds of installation hardware on top of that my pieces aren’t fitting properly, no instruction, on piece of the liner was not In a box and was at the very bottom of the pallet directly on top of the wood and had everything else sitting on top of it so it’s all damaged and messed up. For over $4k spent I am EXTREMELY. Disappointed in my purchase and it has just been a pain in the butt at this point. Not worth it!!! If y’all could send me the rest of the hardware and the right pieces that would be a start in the right direction.
Good overall service experience and happy with the quality of products received.
