SpitzLift Pickup Truck Electric Crane
SpitzLift Pickup Truck Electric Crane
SpitzLift Pickup Truck Electric Crane
Regular price
$4,454.71
Regular price
Sale price
$4,454.71
Unit price
per
check_box Ships from Manufacturer. 2-3 week lead time.
Couldn't load pickup availability
If your order shows up damaged, defective, or missing anything – we make it right, fast. No hassles. No excuses.
With Upfit Shield, every order comes with:
Free replacements on damages & defects
Guaranteed fit & function, or your money back
Fast, USA-based support from real product experts
Description
Description

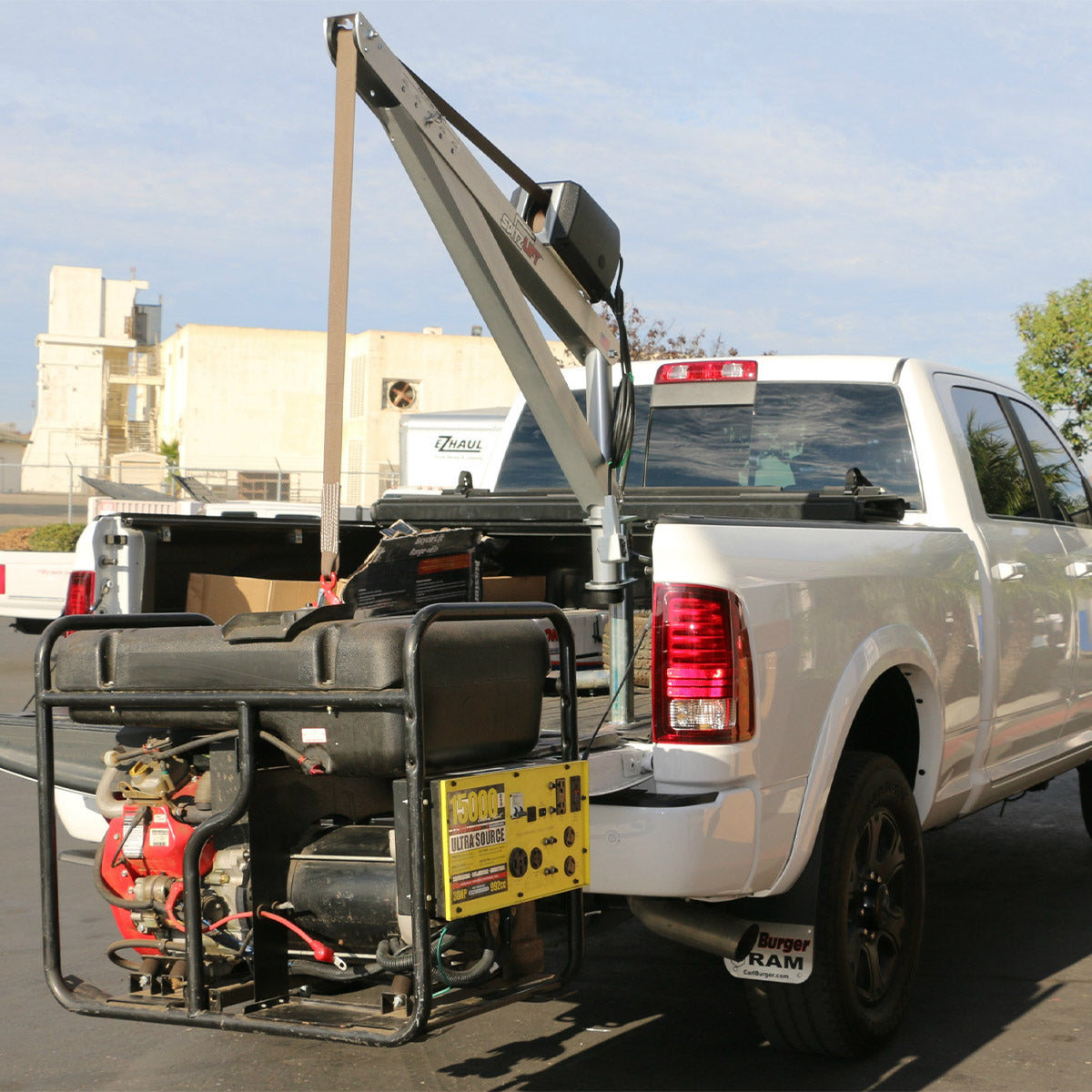

The SpitzLift Pickup Truck In-Bed Crane with Floor Pedestal Mount is a rugged, reliable, and easy-to-install lifting solution designed to fit most full-size pickup trucks. Whether you install it on the left or right side of the truck bed, this crane delivers up to 900 lbs of lifting capacity, making it perfect for tradesmen, contractors, and fleet professionals who need efficient material handling in the field.
Shipped in four compact packages (50 lbs, 18 lbs, 33 lbs, 10 lbs), the SpitzLift Pickup Truck In-Bed Crane is an essential tool for mobile jobsite operations. Whether you're loading generators, compressors, or material bins, this crane helps you get it done faster, safer, and with less strain.
Key Features:
- Universal Pickup Fit: Mounts on either the driver or passenger side of your truck bed for flexible installation.
- Powerful Lifting Capacity: Lifts up to 900 lbs (408.2 kg), perfect for heavy tools, machinery, and jobsite materials.
- Lightweight & Compact: Full system installs at approximately 94 lbs (42.6 kg), helping preserve vehicle payload while delivering heavy-duty performance.
- Built to Last: Made with aircraft-grade aluminum and steel with a clear anodized and powder-coated finish for long-term durability and corrosion resistance.
- Powered Operation: Features the SpitzLift LTD-424 12V DC crane with pendant controller and full wiring harness for seamless truck integration.
- 360° Rotation: Offers smooth, full-circle operation for efficient loading from any angle.
- Reinforced Mounting: Comes with an in-bed pedestal (KBP-1515) and reinforcement kit (KBP-1515H) for secure, reliable installation.
Specifications:
- Mounting Position: Right or left side bed floor
- Installed Weight: Approximately 94 lbs (42.6 kg)
- Max Load Capacity: 900 lbs (408.2 kg)
- Rotation: 360°
- Lifting Speed: 22.5 ft/min (6.858 m/min)
- Power Requirements: 12V DC @ 70 Amps
- Materials: Aircraft-grade aluminum and steel
- Finish: Clear anodized and powder-coated
- Warranty: 3-year limited warranty
Included Components:
- 12V DC SpitzLift crane with pendant controller (Model LTD-424)
- Pivot Mast (Z-LTPT2)
- Post Mast (KPHBS-026)
- Pedestal base (KBP-1515) with reinforcement kit (KBP-1515H)
- DC quick connect and wiring harness
Shipped in four compact packages (50 lbs, 18 lbs, 33 lbs, 10 lbs), the SpitzLift Pickup Truck In-Bed Crane is an essential tool for mobile jobsite operations. Whether you're loading generators, compressors, or material bins, this crane helps you get it done faster, safer, and with less strain.
