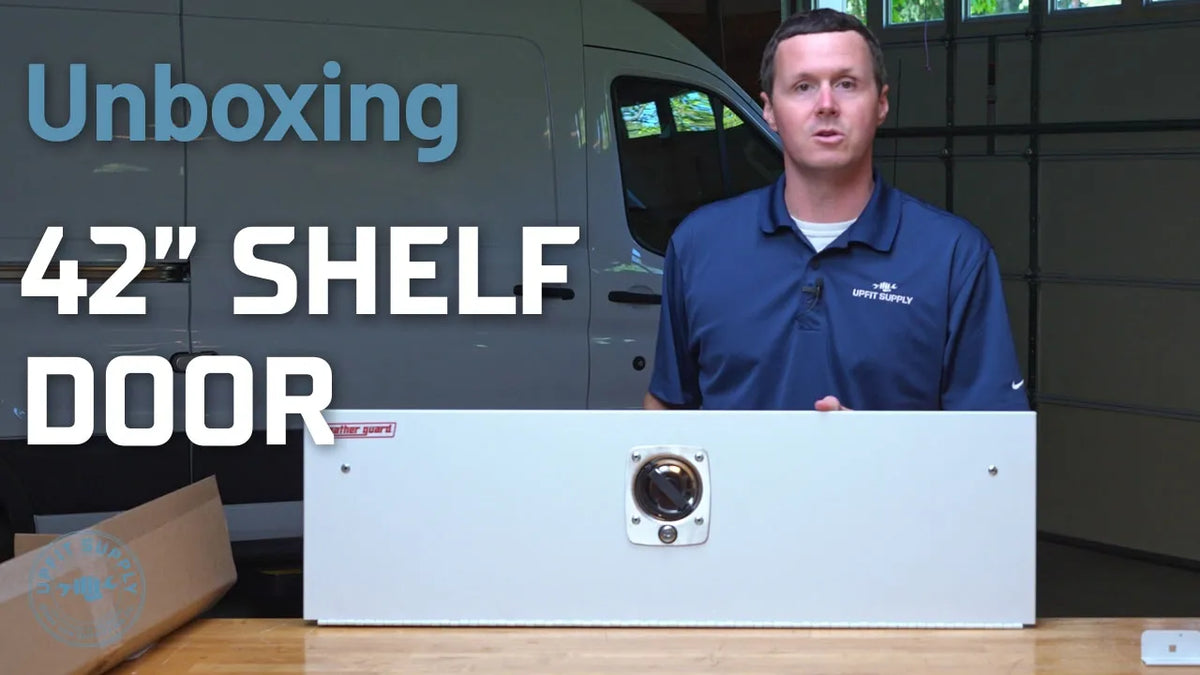

Unboxing Weather Guard 42" Shelf Door: Add a Lockable Compartment to Your Van Shelving

What the Weather Guard 42" Shelf Door Does

The Weather Guard 42" shelf door turns an open-face shelf section into a lockable storage compartment. The Weather Guard 42-inch shelf door covers the front of the shelf, drops down like an underbody toolbox door when unlocked, and is held in the open position by aircraft-grade cable stops so it does not just fall forward onto the shelf below. When closed, it latches to the shelf above it using the shelf's lip geometry and locks with the Weather Guard RH01 key - the same key used across all Weather Guard locking accessories.

What's in the Box

The door comes with two keys, both keyed to the RH01 code. That key code is on the label on the outside of the box, stamped on the lock cylinder itself, and stamped on each key - useful for ordering replacements. The hinge is already built into the panel as a welded-on component, so there is no hinge assembly required. Two wire cable stops are included that hold the door horizontal when lowered. A foam bumper strip is included and goes along the contact edge of the door to cut down on road noise from steel-on-steel contact. A one-page installation sheet with a QR code links to the full Weather Guard video install guide.

Hardware includes brackets, bolts, lock nuts, and washers.

How the Door Works

The Weather Guard 42-inch shelf door latches to the underside of the shelf above it when closed. To open, use the key to release the latch and the door drops forward and down. The aircraft-grade cable stops catch it at roughly 90 degrees, keeping it horizontal and giving you clear access to the shelf contents. Swing the door back up and the latch catches and holds it closed. The key is needed to unlatch it again.

Because the lock cylinder is on the back face of the door, the front face is completely clean with no external hardware, which gives the installed door a factory look from the outside. The RH01 key system means this door operates with the same key as Weather Guard drawer cabinets, other shelf doors, and partition door handles - so you only need one key for your entire van if everything is Weather Guard.

What You'll Need for a Full Enclosure

The shelf door covers the front of the shelf. If you want a fully enclosed compartment with no open access points, you also need a back panel. Here is the full combination:

• 42-inch shelf door (this product) - covers the front, provides the lock
• 42-inch shelf back panel - covers the rear of the shelf
• The shelf unit's side walls naturally close off the left and right

If you install the door without the back panel, the shelf is still accessible from the rear. For a truly enclosed compartment, both are required.

Weather Guard backs this product with a lifetime warranty. Upfit Supply's Upfit Shield guarantee also covers any product that arrives damaged.

Frequently Asked Questions

Does this come in sizes other than 42 inches?

Yes. Weather Guard makes shelf doors for all of their standard shelving widths - 42, 52, and 60 inches. Order the width that matches your specific shelf section.

What if I want a lockable compartment but not a drop-down door style?

The drop-down door is the primary locking door option in the Weather Guard shelving lineup. A different style would require a custom solution outside the standard lineup.

Does the cable stop prevent the door from opening more than 90 degrees?

The cable stops hold the door approximately horizontal at roughly 90 degrees from the closed position, which gives full access to the shelf while keeping the door from falling further forward.

Is the foam bumper pre-installed or applied during assembly?

The foam bumper is included in the box and applied during installation to the contact edge of the door.

Does this door work on Weather Guard shelving of any depth?

The door is sized by shelf width, not depth. It works across Weather Guard's shelving in standard 42-inch wide sections.

Order the Weather Guard 42-inch shelf door at Upfit Supply. To fully enclose the compartment, add the matching 42-inch shelf back panel. For the complete shelving system, browse the full Weather Guard van shelving lineup.
