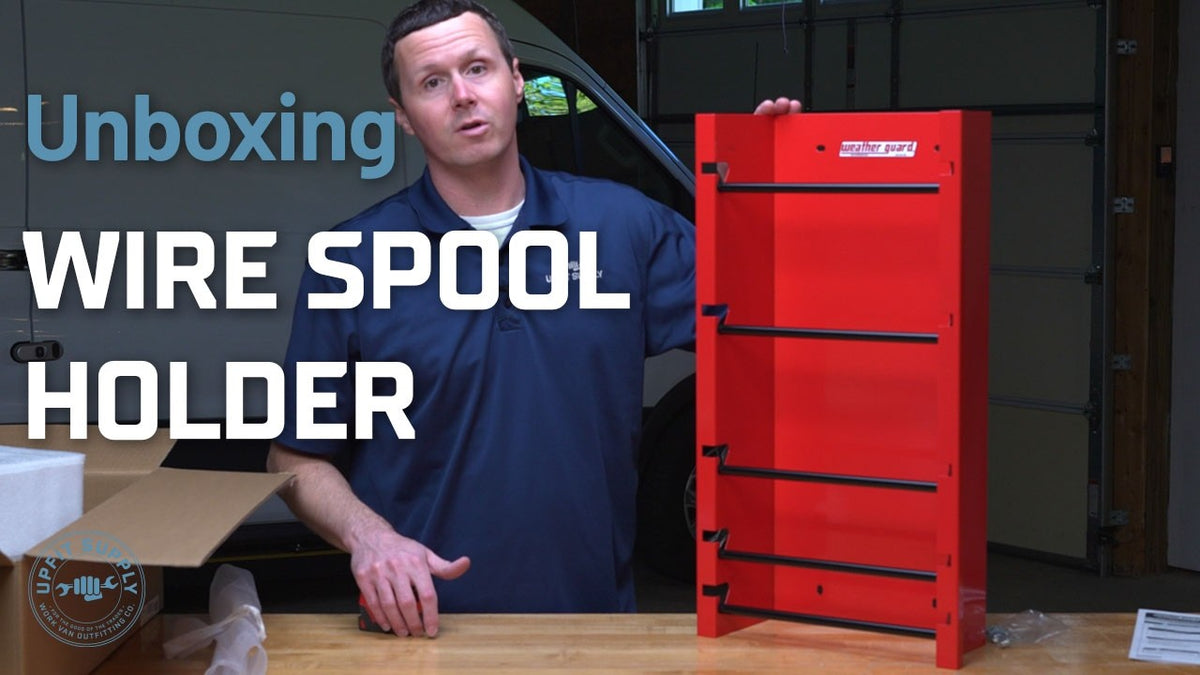

Unboxing Weather Guard's Wire Spool Holder: Get Organized Like a Pro With This Accessory

What the Weather Guard Wire Spool Holder Does

The Weather Guard wire spool holder (part number 9882-7-01) is designed for anyone hauling spools of wire in a work van. Electricians and irrigation contractors are the obvious target, but anyone who regularly runs wire from a van will recognize the value of having spools organized and accessible in a fixed location rather than rolling around on the floor or getting tangled together. The holder mounts to the end panel of your van shelf and holds up to five spools on individual removable steel rods, keeping everything upright, organized, and easy to pull from.

What's in the Box

This is part of Weather Guard's Red Zone accessory line, which means it comes in the accent red color that pairs with the bright white of the Weather Guard shelving system. Inside the box you will find the holder unit itself protected in foam and bagging to prevent scratches in transit, five removable steel rods (the actual spool holders), four bolts, washers, and lock nuts for mounting, and a full installation guide. The guide is a generic end-panel accessory instruction sheet that covers how to mount this type of accessory to an end panel, which is also the same guide used for the spray can holder and literature holder as well.

Dimensions and Spool Capacity

The dimensions matter here since you need to know whether your spools will actually fit before you order. Here is what was measured:

• Outside width of the holder: 14 inches
• Inside usable width: 11 and 7/8 inches
• Depth from back to edge of front lip: approximately 6 inches
• Depth to center of the spool rod: approximately 5 and 3/8 inches - the effective spool diameter that will fit
• Spacing between rods 1 and 2: 7 inches on center
• Spacing between rods 2 and 3: 7 inches on center
• Spacing between rods 3 and 4: 4 and 1/4 inches on center
• Spacing between rods 4 and 5: approximately 3 inches on center
• Mounting hole spacing: 6 and 1/2 inches on center

The rods are removable, which gives you flexibility in how you configure the holder. If you are running larger spools, remove one or two rods and spread the remaining ones out for more clearance between them. If you are running a single large spool, remove all but one rod and load it across the full width. The holder is designed to accommodate multiple spool sizes and use cases rather than locking you into one configuration.

Installation Explained

The holder mounts to the end panel of your van shelving using four bolts, washers, and lock nuts that go through the four existing holes on the back of the unit and into the end panel. No new holes need to be drilled in the end panel itself since Weather Guard's end panels come pre-drilled for this type of accessory mount. The installation guide in the box covers the full process step by step.

Weather Guard backs this product with a lifetime warranty, the same as their full shelving and partition line.

Frequently Asked Questions

How many spools does it hold?

Up to five spools on the five removable steel rods. You can remove rods to accommodate larger spools or configure it for fewer, bigger spools.

What is the maximum spool diameter that will fit?

The effective depth to the center of the spool rod is approximately 5 and 3/8 inches, which is the key measurement for determining whether your spool diameter will clear the holder body.

Does it mount to Weather Guard shelving only, or can it be mounted elsewhere in the van?

While it is designed to mount to Weather Guard end panels, it can technically be mounted to any flat surface that allows the four mounting bolts to pass through, as long as there is structural backing for the fasteners.

Are the steel rods included, or sold separately?

Five removable steel rods are included in the box. They are part of the kit and come ready to install.

What trades is this most useful for?

Electricians and irrigation contractors are the primary users, but anyone who regularly hauls multiple wire spools in a van will benefit from having them organized in a fixed, accessible location.
